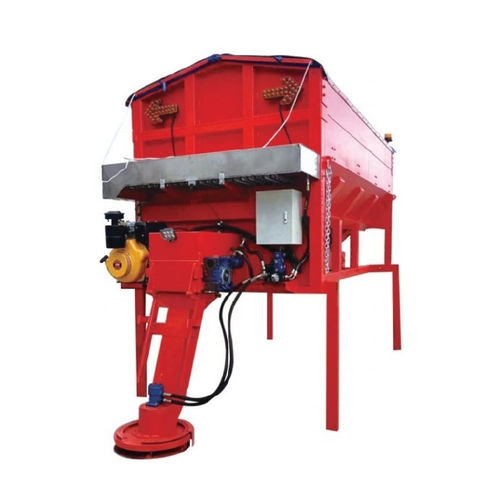

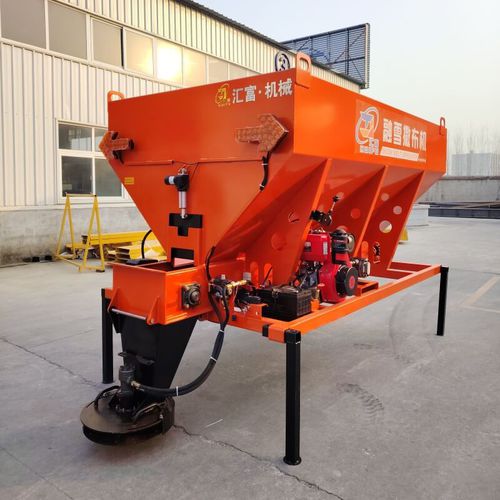

Mounted salt spreader HF seriespushfor roads
Add to favorites
Compare this product
Characteristics
- Other characteristic
- mounted, push, for roads
- Capacity
1.5 m³, 4 m³, 6 m³
(53 ft³, 141.3 ft³, 211.9 ft³)
Description
Product Description
Advantages
Technical Parameters
Precautions for use
Specifications / Technical specifications
- Structural composition: Storage system: large-capacity corrosion-resistant hopper for de-icing agent; capacity varies by model to suit different operating ranges (1.5 / 4 / 6 m³).
- Conveyor system: screw conveyor or conveyor belt to transport material from hopper to spreading device. Screw conveyors provide controlled feed rate; conveyor belts suit larger particles or poor flowability.
- Spreading device: single rotating disc driven by power take-off or motor distributes agent evenly. Spreading width and application rate are adjustable, typically 2–8 m.
Advantages
- High operational efficiency: designed for rapid coverage of large road areas; when operated at recommended speed it enables fast response to winter emergencies and reduces time to re-open routes.
- Reduced manpower and improved operator conditions: requires minimal staff to operate; operators remain in the vehicle cab, limiting exposure to harsh weather and lowering labor intensity.
Technical Parameters
- Series: HF (models: Hf-1.5RX, HF-4RX, HF-6RX)
- Hopper capacity (m³): 1.5 / 4 / 6
- Supporting power (hp): 12 (all models)
- Spreading width (m): 2-8
- Overall dimensions (mm): 2710×1200×1380 (1.5 m³); 3619×1680×2118/1575 (4 m³); 5140×2200×2400 (6 m³)
- Spreading device: Single disc
- Max. load capacity (kg): 3000 / 8000 / 12000
- Battery: 12V 80Ah (4 m³ model)
- Salt conveyance method: Chain Scraper Push
- Motor (where specified): BM2-80 (4 m³ model)
Precautions for use
- 1. Preparation before operation: inspect vehicle (tyres, brakes, lights), power system (fuel/battery), and spreading components (hopper, conveyor, disc) for leaks or blockages. Prepare de-icing material: select appropriate agent for temperature and road type; avoid damp or clumped material and screen to remove impurities.
- 2. Key points during operation: follow traffic rules, deploy warning signs and lights, maintain safe driving on icy surfaces, avoid sudden braking or sharp turns. Typical operating speed: 10–30 km/h depending on conditions.
- 3. Maintenance after operation: clean residual agent from hopper and conveyor (rinse with water; use dedicated cleaners for stubborn deposits), dry components to prevent corrosion, and store remaining agent in a labeled, dry, ventilated location.
Specifications / Technical specifications
- Series: HF (Hf-1.5RX, HF-4RX, HF-6RX)
- Hopper capacity: 1.5 / 4 / 6 m³
- Supporting power: 12 hp
- Spreading width: 2–8 m
- Overall dimensions (mm): listed per model above
- Spreading device: single disc
- Max load: 3000 / 8000 / 12000 kg
- Battery: 12V 80Ah (4 m³)
- Conveyance: Chain Scraper Push
- Motor: BM2-80 (where specified)
