Mounted salt spreader

for roads

Product Overview

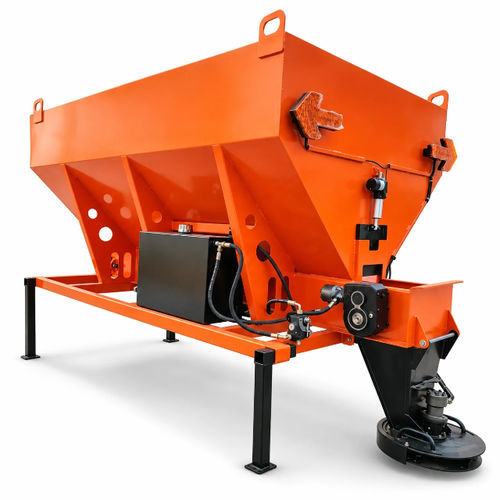

The 4 Cubic Meter Vehicle-Mounted Snow Melting Agent Spreader is designed for winter road maintenance and controlled spreading of deicing materials on roads and paved surfaces. The machine uses a 4m³ hopper, chain-slat conveying system and disc-type spreading device. Material is transferred from the hopper to the spreading disc and distributed across the road surface with a specified spreading width of 2-8m. Its vehicle-mounted configuration is suitable for municipal road maintenance, industrial areas and other winter service applications requiring mobile deicing material spreading.

Key Features and Advantages

• 4m³ Hopper Capacity: increased material capacity for longer operation between refills.
• Chain-Slat Material Conveying: reliable transfer of deicing material from hopper to spreading device.
• Disc-Type Spreading System: distributes material evenly across a selectable width of 2–8 m.
• Vehicle-Mounted Configuration: designed for installation on a suitable carrier vehicle for mobile operations.
• Independent Diesel Power: powered by a 12 HP Youpu diesel engine to drive the conveying and spreading systems.
• Manual Throttle Control: simple manual throttle for engine speed adjustment during operation.

Overall Dimensions and Capacity
Overall Dimensions: 3619×1680×2118/1575 mm. Maximum Load Capacity: 8000 kg. Spreading Width: 2–8 m.

Applications

• Municipal roads
• Streets and paved areas
• Industrial and commercial sites
• Winter road maintenance operations

Applicable materials

• Snow melting agent
• Deicing material

Operation Instructions and Safety Notes
Pre-operation inspection
Check the carrier vehicle, power system, hopper, chain-slat conveyor and spreading disc before operation. Confirm that moving components rotate freely and that there are no loose, damaged or blocked parts.
Material preparation
Use suitable deicing material and avoid loading wet, heavily caked or contaminated material that may interfere with conveying or spreading.
Loading and road safety
Do not exceed the specified load capacity. During winter operation, avoid sudden braking and sharp steering, especially on icy roads. Follow local traffic and work-zone safety requirements.
Spreading operation
Select the spreading width according to road width and operating conditions. Monitor material flow during operation and stop the system before clearing any blockage.
Weather considerations
Adjust the spreading approach according to snowfall, road conditions, temperature and wind. Strong wind may affect material distribution.

Maintenance Recommendations

• Remove residual deicing material from the hopper, conveyor and spreading device after operation.
• Wash areas exposed to deicing material to reduce corrosion risk.
• Dry cleaned components before storage where practical.
• Inspect the chain-slat conveyor and spreading disc for wear or blockage.
• Check the diesel engine according to normal service requirements.
• Inspect the battery and electrical connections regularly.
• Store remaining deicing material in a dry, ventilated place to reduce moisture absorption and caking.

Technical specifications

• Product Type: Vehicle-Mounted Snow Melting Agent Spreader
• Power: 12 HP Diesel Engine (Youpu)
• Overall Dimensions: 3619×1680×2118/1575 mm
• Hopper Dimensions: 2900×1660/217×1224 mm
• Hopper Volume: 4 m³
• Maximum Load Capacity: 8000 kg
• Spreading Device Type: Disc Type
• Material Conveying System: Chain-Slat Conveyor
• Spreading Width: 2–8 m
• Mounting Type: Vehicle-Mounted
• Throttle Control: Manual Throttle
• Battery: 12V 80AH × 1
• Motor: BM2-80
