Chain manure scraper 9QF series

self-propelledU-shaped

Product overview

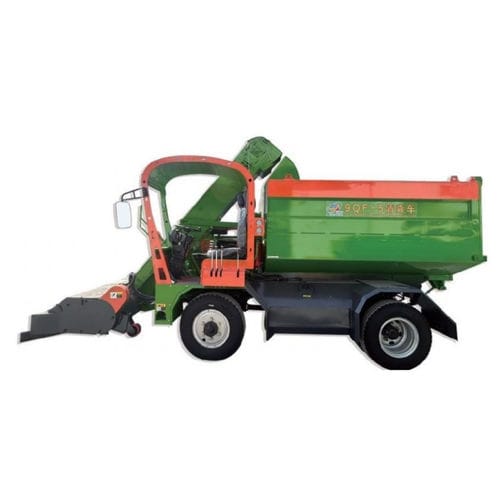

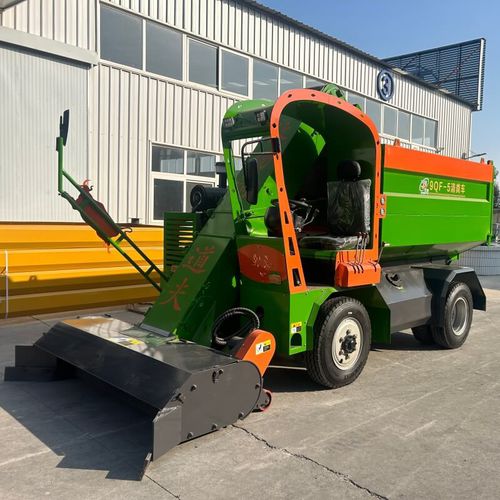

The 9QF series manure removal collector is a self-contained agricultural vehicle designed for efficient collection, transport and unloading of solid manure on large-scale farms. It integrates front auger intake with scraper-chain conveying to transfer manure into a rear hopper for transport or direct spreading.

Details
Constructed with welded thick steel plates, the machine offers a high degree of mechanization and simple operation. Functions include collection, transportation and self-unloading. Use on large farms reduces manual labor, improves operational speed, limits environmental contamination and helps maintain hygiene and herd health. Cleared manure can be processed as fertilizer to support resource recycling. Select the appropriate model based on farm size, surface conditions and required hopper capacity.

Technical parameters

• Model 9QF-3: Hopper 3 m³ · Power 25.7 hp · Diesel engine: Changchai · Weight 2000 kg · Drive 2WD · Steering: Front · Loading: Front auger + scraper chain · Unloading: Self-unloading · Tyres: Front 7.50-16, Rear 6.50-10 · Size 4220×1650×2300 mm · Efficiency: 30–50 m/min
• Model 9QF-5: Hopper 5 m³ · Power 76 hp · Diesel engine: Yunnei 490 · Weight 3300 kg · Drive 4WD · Steering: Front · Loading: Front auger + scraper chain · Unloading: Self-unloading · Tyres: 750R16 · Size 5200×2200×2600 mm · Efficiency: 5–8 min per hopper
• Model 9QF-8: Hopper 8 m³ · Power 103 hp · Diesel engine: Yunnei 4102 · Weight 5300 kg · Drive 4WD · Steering: Front · Loading: Front auger + scraper chain · Unloading: Self-unloading · Tyres: 750R16 · Size 5700×2200×2800 mm · Efficiency: 5–8 min per hopper
• Model 9QF-10: Hopper 10 m³ · Power 103 hp · Diesel engine: Yunnei 4102 · Weight 6000 kg · Drive 4WD · Steering: Front · Loading: Front auger + scraper chain · Unloading: Self-unloading · Tyres: 20.5 / 670 / 616 (model-dependent) · Size 5700×2200×3000 mm · Efficiency: 5–8 min per hopper

Features / Specifications

• Product name: Manure Removal Collector
• Model series: 9QF (9QF-3, 9QF-5, 9QF-8, 9QF-10)
• Hopper capacity: 3 / 5 / 8 / 10 m³
• Supporting power: 25.7 hp / 76 hp / 103 hp / 103 hp
• Diesel engine options: Changchai, Yunnei 490, Yunnei 4102
• Overall weight: 2000 kg / 3300 kg / 5300 kg / 6000 kg
• Drive type: 2WD or 4WD depending on model
• Steering: Front steering
• Manure loading system: Front auger collection with scraper-chain conveying
• Unloading method: Self-unloading
• Tyre specifications: Front and rear tyre types vary by model
• Overall dimensions (mm): see model listings above
• Working efficiency: 30–50 m/min or 5–8 minutes per hopper depending on model
