Chain automatic feed distribution unit 9SL series

beltsheepcattle

Product overview

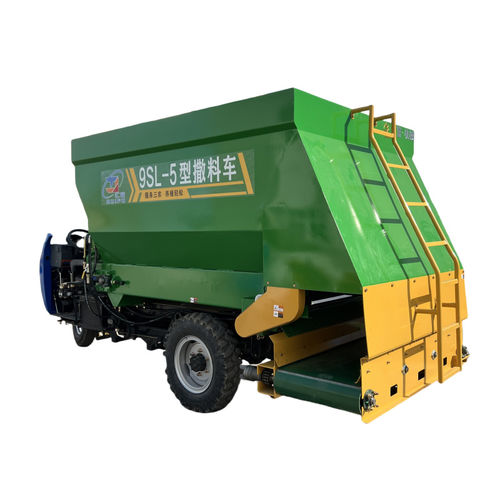

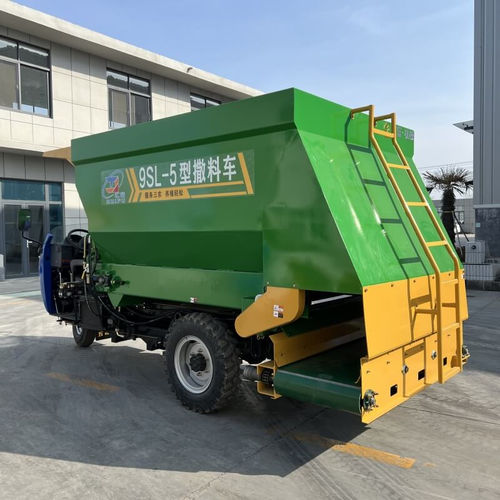

The diesel tricycle feed spreader 9SL series is designed to distribute mixed feed evenly and complete feeding in a single pass. It is simple to operate and can be handled by one person. Compatible with TMR mixers and feed wagons, it is intended for small and medium-sized farms.

Main advantages

• High feeding efficiency with reduced labor and operating cost
• Low noise level, suitable for sheep and cattle farms, including dairy operations
• Improves mechanization and feed utilization rate
• Provides short-term balanced feeding to better retain feed nutrients

Technical parameters

• Model: 9SL-3 (3 m³) / 9SL-5 (5 m³)
• Hopper capacity: 3 m³ / 5 m³
• Supporting power: 25 hp (3 m³) / 28 hp (5 m³)
• Transmission type: Hydraulic
• Drive mode: Dual-side belt
• Overall size (mm): 4400×1550×2000 (3 m³) / 4400×1550×2600 (5 m³)
• Load capacity (kg): 600 (3 m³) / 800 (5 m³)
• Feed conveying method: Chain scraper push

Applications

• Feeding cattle, sheep and other ruminants on small and medium farms
• Integration with TMR mixers and feed wagons for automated feeding cycles

Options and delivery

• Available in 3 m³ and 5 m³ variants; mountable on diesel tricycle or tractor PTO depending on configuration
• Contact the supplier for customization, spare parts and transport options
