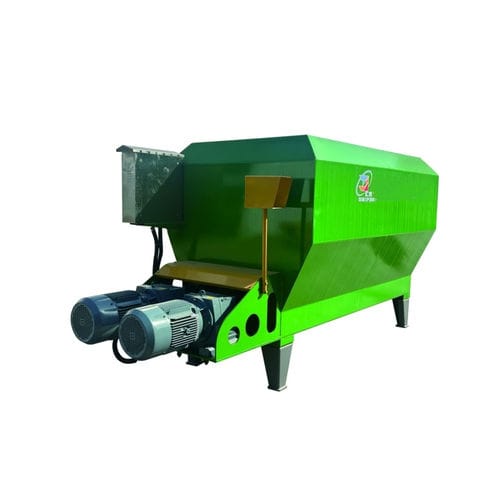

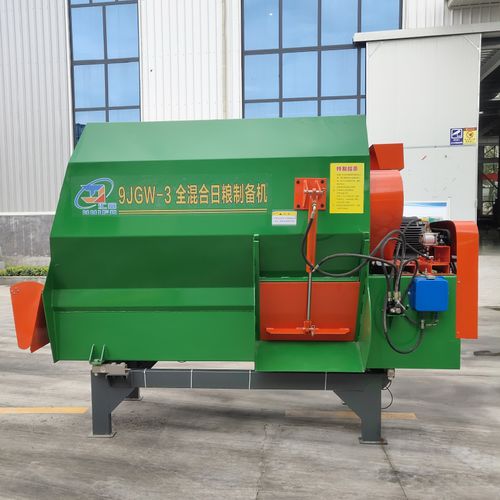

Horizontal feed mixer 9JGW series

stationaryelectric motor

Product Overview
The TMR horizontal feed mixer is built for farm-scale feed processing. The bottom of the material tank is made of alloy steel suitable for operation in harsh environments. The cutting blade is manufactured from wear‑resistant materials to reduce wear during continuous use. The machine accepts silage, bales, straw and various fibrous feeds for direct shredding and mixing. Typical cutting and mixing time per batch is about 20 minutes. Depending on hopper volume, each mixer can feed approximately 200–1500 cows per day, replacing manual mixing tasks and increasing feeding consistency.

TMR Feeding Technology
TMR (Total Mixed Ration) is a feeding method that thoroughly mixes coarse forages, concentrate feeds, minerals, vitamins and additives to deliver a consistent nutrient concentration in every bite. Using TMR technology with appropriate formulation and a high‑performance mixer ensures repeatable rations, improved intake uniformity and simplified feed management for herd nutrition control.

Technical Parameters (examples)

• Model: 9JGW-3S — Hopper capacity: 3 m³; Overall dimension: 3105×1500×1740 mm; Electric motor power: Dual direct drive 7.5+7.5 kW
• Model: 9JGW-4D — Hopper capacity: 4 m³; Overall dimension: 3750×1600×2180 mm; Electric motor power: Single direct drive 15 kW
• Model: 9JGW-4S — Hopper capacity: 4 m³; Overall dimension: 3330×1550×1950 mm; Electric motor power: Dual direct drive 7.5+7.5 kW
• Model: 2FGH-5D — Hopper capacity: 5 m³; Overall dimension: 4300×1600×2280 mm; Electric motor power: Single direct drive 18.5 kW
• Model: 9JGW-9S — Hopper capacity: 9 m³; Overall dimension: 4480×1970×2480 mm; Electric motor power: Dual direct drive 15+15 kW
• Model: 9JGW-12S — Hopper capacity: 12 m³; Overall dimension: 5650×2200×2280 mm; Electric motor power: Dual direct drive 22+22 kW
• Model: 9JGW-20S — Hopper capacity: 20 m³; Overall dimension: 7350×2070×2650 mm; Electric motor power: Dual direct drive 30+30 kW

Features / Specifications

• Material tank bottom: alloy steel suitable for harsh farm environments
• Cutting blade: made of wear‑resistant materials for extended operational life
• Suitable feed types: silage, bales, straw and other fibrous feeds (direct feed-in for shredding and mixing)
• Mixing time: approximately 20 minutes per batch (cutting and mixing)
• Feeding capacity: depending on hopper volume, approximately 200–1500 cows per day
• Operation: flexible, convenient and designed for safe, reliable farm use
• Available models: 9JGW-3S, 9JGW-4D, 9JGW-4S, 2FGH-5D, 9JGW-9S, 9JGW-12S, 9JGW-20S
