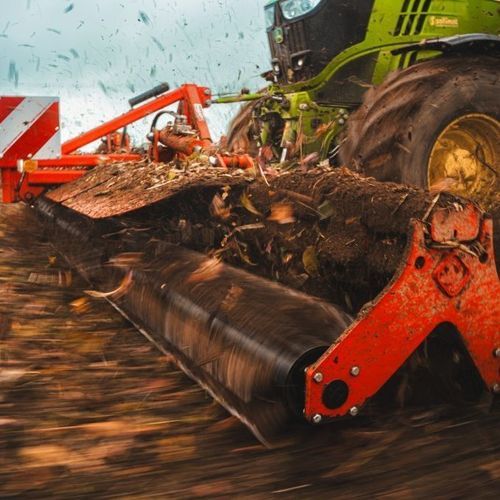

Crop roller ROLLCUT

front-mounted

General characteristics
The ROLLCUT is a double-roller stalk destructer designed for shredding cover crops and crop residues at speeds above 25 km/h. It features interchangeable, reversible blades and two rollers of different diameters (Ø440 mm front, Ø400 mm rear) to ensure efficient chopping and destruction. The machine can be ballasted if required. Standard hitching is push-directional; an optional push–pull hitch is available. Deflectors protect the tractor from debris. In front-mounted position the ROLLCUT delivers effective work while avoiding crop compaction by tractor wheels.

Technical description

• Frame: single-beam 140 x 80 mm
• Shafts: Ø60 mm mounted on maintenance-free, lifetime-greased bearings
• Rollers: 8 blades; Ø440 mm front and Ø400 mm rear
• Blade mounting: helical arrangement
• Blades: reversible, height 100 mm
• Hitch: 3-point push-directional yoke, category 2 with locking
• Folding: by 2 cylinders with hydraulic locking
• Hydraulic equipment required: 1 double-acting service (if folding)
• Signalling: supplied as standard

Use
Designed for post-harvest use on oilseed rape, soybean, sunflower, corn and forage maize, and for destruction of cover crops and crop residues.

Key benefits

• Fast and economical destruction — working speeds 25–30 km/h with fuel consumption around 1.5–2 L/ha (non-road diesel)
• Destroys cover and crop residues without altering soil structure
• Enhances frost action on plant remains
• Facilitates organic matter decomposition

Options

• Directional push–pull hitch with locking (+80 kg) and rear lights on foldable version
• Ballast weights set 2×84 kg (up to 2 sets possible on 5 and 6 m versions)

Technical specifications

• Frame: single-beam 140 x 80 mm
• Shafts: Ø60 mm on maintenance-free, lifetime-greased bearings
• Rollers: 8 blades; Ø440 mm front and Ø400 mm rear
• Blade mounting: helical arrangement
• Blades: reversible, height 100 mm
• Hitch: 3-point push-directional yoke, category 2 with locking
• Folding: by 2 cylinders with hydraulic locking
• Hydraulic equipment required: 1 double-acting service (if folding)
• Signalling: supplied as standard
• Available models and working widths: ROLLCUT 300 — 2.90 m; ROLLCUT 350 — 3.30 m; ROLLCUT 400 — 4.00 m; ROLLCUT 500 — 5.00 m; ROLLCUT 610 — 6.10 m
