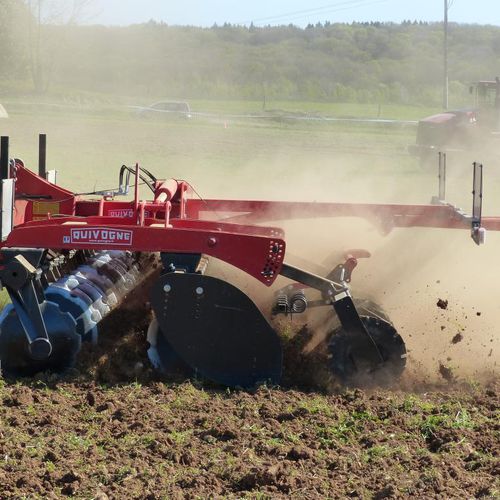

Mounted disc harrow DISKACROP series

2-sectionwith hydraulic adjustment3-point hitch

Designed for work of medium depth (up to 20 cm), the Diskacrop allows to carry out a large number of operations: superficial stubble, resumption of plowing, false seeding or preparation of the seed bed, making it a tool extremely versatile. Its large diameter discs make it easy to bury residues and thus obtain a good soil-debris mixture even in wet conditions. Working at optimum speed of 10 to 15 km / h, the Diskacrop is the best place for important work output, especially in the presence of organic material such as manure or corn stover. TECHNICAL SPECIFICATIONS • Main frame ■ 250 x 250 mm • 2 rows of discs Ø660 mm, thickness 6 mm, spacing between discs 265 or 300 mm • Dual-seal hub with twin row ball bearings, maintenance-free • Non-stop safety device with 4 elastomers Ø50 mm • Comb harrow with single row Ø12 mm between the second row of discs and the roller • 3-point hitch with clevis attachment, category 3 • Retractable anti-projection deflector for overcoming obstacles • Mechanical adjustment of the working depth by the rear roller • Folding by 2 jacks (DISKACROP 400) and by 4 jacks (DISKACROP 500 & 600) with manual locking • Signalling and lighting kit • Hydraulic equipment required: 1 DE (if folding machine) UTILISATION Universal implement for soil tillage (working depth 3 to 18 cm). Intense and homogeneos mixing of soil and organic matter, optimal seed bed preparation. Direct reconsolidation with the trailing roller - quick rotting and only low loss of moisture.The wide disc row distance ensures blockage free working.
