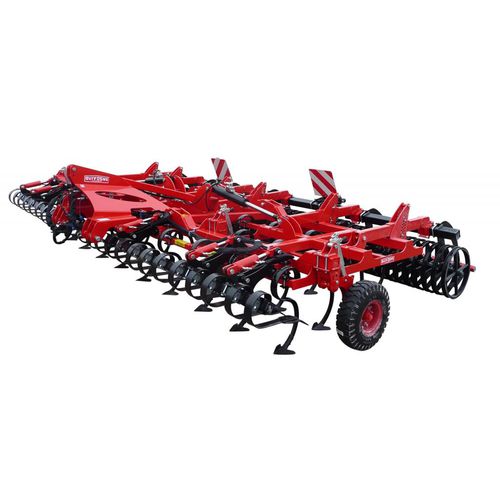

Towed stubble cultivator DEMETER series

with roller3-point hitchfolding

A multifunctional vibro stubble cultivator that is ideal for shallow stubble cultivation, working down ploughing, seedbed preparation, and broadleaved weed destruction or even burying straw or muck. TECHNICAL SPECIFICATIONS Thanks to its high clearance frame (58 cm ground clearance), the Demeter is able to perform excellent work even in the presence of abundant residue. Its main frame 100x 100 x 6.3, made from FORTERIOR 500 steel, is built around an innovatively designed tough top linkage frame made from High Elastic Limit S700 steel. Built with 4 beams 4 of 60 x 60 x 4, the Demeter is equipped with 40 vibrating tines 70 x 12mm and is able to be fitted with duck feet hoe tines as an option for broadleaved weed destruction. This type of tine enables shallow stubble cultivation (up to 15cm) with the easy penetration that vibrating tines are capable of. Furthermore the vibrations and the large under beam clearance ensure good mixing of crop residues, and well fractured soil and clods. Fitted with the Z roller as standard, this implement can be equipped with an angle iron crumbler rollers U, V, T, and the Lamflex roller, or a double notched roller, a following harrow Ø13 mm, a hydraulic front levelling board (with an elongated frame), depth wheels Ø650 and a small seed broadcasting unit. A few figures: Transport width: 2m90 Under beam clearance: 58cm Inter-row spacing: 15cm Number of points: 40
