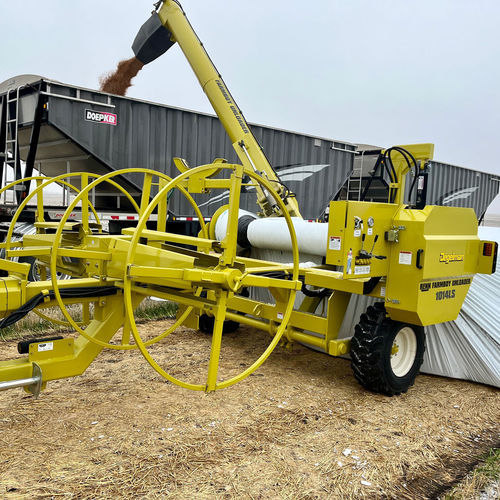

Grain bag unloader 1014

for grainswith wheels

Overview
RENN Grain Bag Unloaders are continuous-flow machines engineered to safely and efficiently unload 9', 10' and 12' diameter grain bags while managing spent plastic for recycling. Designed for farmers and contractors, these units pair high-capacity discharge systems with low PTO and hydraulic requirements to reduce field time and labour.

Operation & Plastic Management
The bag is guided onto the drive spools by RENN rollers and a hold-down system to minimize stress and prevent spillage. The continuous-flow unloading draws the unloader and power unit into the bag while high-capacity discharge augers remove grain rapidly. The onboard recycle-ready plastic management uses a hydraulic ratchet to wind spent plastic onto rear rewind spools, producing a clean, compact package that is easy to remove and recycle.

Ease of Use & Durability
Transitioning from transport to operating mode requires minimal effort and no tools: the operator backs the unit into the bag and lowers the machine. Built for harsh field conditions, RENN Unloaders allow efficient unloading anywhere on the farm with minimal operator fatigue.

Unloader Features

• 540 PTO (FBU 1014) or 1000 PTO (RGU 1218 CD) with shear bolt protection
• Mechanically driven inclined discharge auger with CV joint
• Left-hand or right-hand discharge (right-hand only on FBU 1014)
• Discharge auger sizes: 14" (FBU 1014) to 18" (RGU 1218 CD)
• Sweep auger sizes: 9" (FBU 1014) and 11" (RGU 1218 CD)
• Bag hold down frame and control rollers
• Bag lift roll and separation knives
• Hydraulic ratcheting bag collection and optional hydraulic rewind spool (FBU 1014)

FARMBOY UNLOADER 1014 — Key Table
Lift Auger (in.) : 14
Folding Discharge Auger (in.) : 12
Sweep Auger (in.) : 9
Horizontal Discharge Auger (in.) : N/A
Discharge Reach (in.) : 173
Transport Height (in.) : 96
Transport Width (in.) : 115
Maximum Rated Capacity : 150 bu./min (4 t/min.)
Tire Size : 12 - 16.5 6 Bolt
Minimum HP : 50
Minimum Hydraulic Gal./Min. : 4

RGU 1218 CD — Key Table
Lift Auger (in.) : 18
Folding Discharge Auger (in.) : N/A
Sweep Auger (in.) : 11
Horizontal Discharge Auger (in.) : 12
Discharge Reach (in.) : 194
Transport Height (in.) : 144
Transport Width (in.) : 105
Maximum Rated Capacity : 250 bu./min (6.8 t/min.)
Tire Size : 12.5 x 16" 6 Bolt Rim
Minimum HP : 100
Minimum Hydraulic Gal./Min. : 10

Technical specifications

• Models covered: FARMBOY UNLOADER 1014 (FBU 1014) and RGU 1218 CD
• Supported bag diameters: 9', 10', 12'
• Continuous-flow unloading with high-capacity discharge augers
• Onboard recycle-ready plastic management with hydraulic ratchet rewind
• Discharge auger sizes from 14" to 18"; sweep auger 9" or 11"
• Maximum rated capacities: 150 bu./min (FBU 1014) and 250 bu./min (RGU 1218 CD)
• Minimum PTO/HP: 50 HP (FBU 1014, 540 PTO) and 100 HP (RGU 1218 CD, 1000 PTO)
• Minimum hydraulic flow: 4 gal./min (FBU 1014) and 10 gal./min (RGU 1218 CD)
• Transport dimensions (H x W): 96" x 115" (FBU 1014); 144" x 105" (RGU 1218 CD)
• Tire sizes: 12 - 16.5 6 Bolt (FBU 1014); 12.5 x 16" 6 Bolt Rim (RGU 1218 CD)
• Designed for field durability, foldable for transport and minimal operator effort
