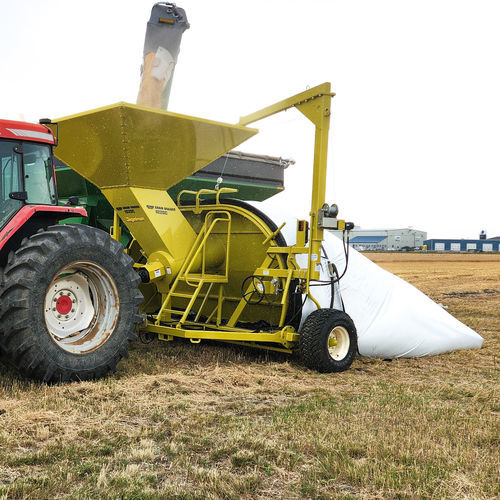

Grain bagger RGB series

towedcompactsingle-auger

Product Overview
RENN grain baggers are towable bagging machines designed to load 10' and 12' diameter grain bags. The range offers multiple auger diameters and feed configurations to suit field unloading and filling operations, maximizing loading efficiency from a single unloading point.

New Model
The RGB 1016T is a compact, transportable model featuring an on-board telescopic swing auger and a hydraulic folding in-feed auger, enabling fast conversion between transport and operating modes and simplified field handling.

Design & Benefits
The low-profile tunnel follows the natural bag shape for smoother filling and reduced bag stress. Full-length augers provide a low fill point to extend bagging travel per unloading. The patented Integrated Transport System allows rapid folding for safe road transport and storage.

Standard Features

• 540 PTO with shear bolt protection
• Direct-drive inclined extended filling auger
• Internally mounted auger bearings for protection
• Traction tires with disc brakes
• Rotating bag boom with cable winch (10' model only)
• Bag cradle that positions the grain bag on the tunnel
• Bag control harness with ratchet strap
• Over-center locking bag pan height control lever
• Low-profile extended tunnel design to minimize bag stress
• Folding auger for transport (10' model only)
• Integrated transport system (1024C and 1224C models)
• Low auger fill point for maximum loading efficiency (RGB 1016 & RGB 1220 models only)
• Externally mounted operating wheels for bagger stability
• Hydraulic Bag Winch Kit available (10' and 12' models)

Models and Specifications
Model RGB 1020C
Tunnel Size: 10'
Auger Diameter: 20"
Auger Size: 1/4"
Auger Drive: Direct Drive
PTO: 540
Brakes: Disc
Tire Size: 32" x 11.5" x 15"
Surge Hopper: 8' x 8' offset
Weight: 3460
Max Rated Load Capacity *: 33,000 bu/hr.
Operating Width: 191"
Transport Width with Hopper: 191"
Transport Width w/o Hopper: 191"

Model RGB 1024C
Tunnel Size: 10'
Auger Diameter: 24"
Auger Size: 1/4"
Auger Drive: Direct Drive
PTO: 540
Brakes: Disc
Tire Size: 32" x 11.5" x 15"
Surge Hopper: 8' x 8' offset
Weight: 5700 lbs
Max Rated Load Capacity *: 51,000 bu/hr.
Operating Width: 191"
Transport Width with Hopper: 191"
Transport Width w/o Hopper: 191"

Model RGB 1016T
Tunnel Size: 10'
Auger Diameter: 16"
Auger Size: 3/16"
Auger Drive: Direct Drive
PTO: 540
Brakes: Disc
Tire Size: 32" x 11.5" x 15"
Surge Hopper: 8' x 8'
Weight: 6575
Max Rated Load Capacity *: 18,000 bu/hr.
Transport Width with Hopper: 162"
Auger Min. Hyd.: 20 GPM
Auger Size (aux): 12" x 13'

Model RGB 1224C
Tunnel Size: 12'
Auger Diameter: 24"
Auger Size: 1/4"
Auger Drive: Direct Drive
PTO: 540
Brakes: Disc
Tire Size: 32" x 11.5" x 15"
Surge Hopper: 8' x 8' offset
Weight: 6800 lbs
Max Rated Load Capacity *: 51,000 bu/hr.
Operating Width: 217"
Transport Width with Hopper: 139"

*Based on Surge Hopper Loading

Characteristics / Technical specifications

• Available tunnel sizes: 10' and 12' (models for 10' and 12' diameter bags)
• PTO: 540
• Auger drive: Direct Drive on all listed models
• Typical auger diameters: 16", 20", 24" depending on model
• Auger material/thickness: 3/16" (RGB 1016T) and 1/4" (other models)
• Surge hopper configuration: 8' x 8' (offset on several models)
• Transport system: Patented Integrated Transport System (folding capability for transport)
• Max rated load capacities (surge hopper basis): 18,000 to 51,000 bu/hr. depending on model
• Traction tires with disc brakes; tire size 32" x 11.5" x 15"
• Optional Hydraulic Bag Winch Kit available for 10' and 12' models
