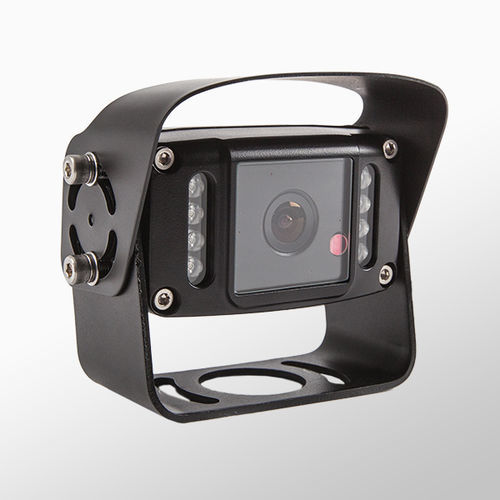

Rear-view camera RK 1415M

for farm machinery

The 12/24 V rear view camera with window heater, for use on agricultural machinery and commercial vehicles. Extremely robust (highest protection class IP 69K). The RK 1415M (PAL + NTSC) with especially robust IP69k housing can be connected to all vehicles with 12V or 24V on-board power supply. This is particularly dust, dirt, rain and frost resistant. Thanks to its robust design, the camera meets the very high IP69K protection class for water and dust tightness and can also withstand cleaning with a high-pressure cleaner. A window heater is also installed for adverse weather conditions. Operation is possible at temperatures from -30 to +70 °C. Viewing angle: 150° ( D ) Protection class: IP 69K Connection cable: MiniDIN 1/3“ CCD Video format PAL / NTSC 700 TV lines 0,01 Lux (0 Lux with IR LED on) Heating Operating temperature range -30°C ~ 70 °C Power supply 12/24 V Dimensions 76mm x 64mm x 42mm (without sun visor) Certificates E-mark ECE 118 ES-95400-10 (analog DIN EN ISO 9227) IEC 60068-1:2013 / DIN EN 60068-1 VDE 0468-1:2015-09 IEC 60068-2-11:1981 DIN EN 60068-2-11:2000-02 MBN LV 124-2:2013-08
