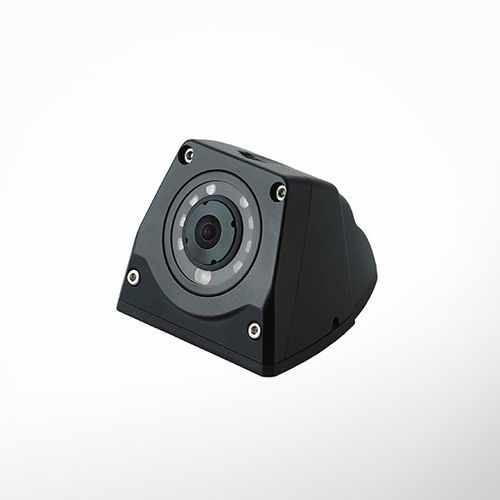

Rear-view camera SK 1706M

The SK 1706M camera (12/24 V) has a diagonal viewing angle of 150° and is suitable for use as a side and rear view camera. It is extremely robust and meets the highest protection class IP 69K. The SK 1706M camera with particularly robust IP69k housing can be connected to all vehicles with 12 V or 24 V on-board power supply. It is ideal for use as a side and rear view camera, especially in extreme applications. It is resistant to dust, dirt, rain and frost. Due to the robust design, the camera meets the very high IP69k protection class for water and dust resistance and can also withstand cleaning with a high-pressure cleaner. Operation is also possible at temperatures from -30 to +80 °C. Angle of view: 150° (D) Protection class: IP 69K Connection cable: MiniDIN 1/3,2“ CMOS Video format PAL 800 TV lines 0,01 Lux (0 Lux with IR LED on) Operating temperature range -30°C ~ 80 °C Power supply 10 -32 VDC Dimensions 57mm x 47,5mm x 65,5mm Certificate E-mark IP69K ECE 118 ES-95400-10 (analog DIN EN ISO 9227) IEC 60068-1:2013 / DIN EN 60068-1 VDE 0468-1:2015-09 IEC 60068-2-11:1981 DIN EN 60068-2-11:2000-02 MBN LV 124-2:2013-08
