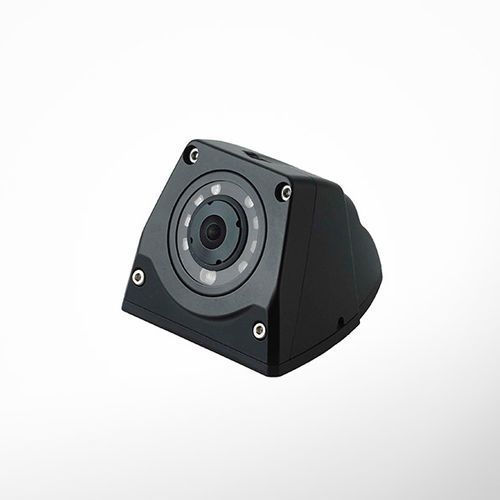

Rear-view camera SK 1710M

for farm machinery

The 12/24 V camera has a diagonal viewing angle of 78° and is suitable as a front and side camera for use on buses, trucks, agricultural and construction machinery. It is extremely robust and meets the highest protection class IP 69K. The SK 1710M camera with particularly robust IP69k case can be connected to all vehicles with 12 V or 24 V on-board power supply. Due to its narrow viewing angle, it is ideal for use as a front and side camera, especially in extreme applications. It is particularly resistant to dust, dirt, rain and frost. Due to the robust design, the camera meets the very high IP69k protection class for water and dust resistance and can also withstand cleaning with a high-pressure cleaner. Operation is also possible at temperatures from -30 to +80 °C. Angle of view: 78° (D) Protection class: IP 69K Connection cable: MiniDIN 1/3,2“ CMOS Video format PAL 800 TV lines 0,01 Lux (0 Lux with IR LED on) Operating temperature range -30°C ~ 80 °C Power supply 10 -32 VDC Dimensions 57mm x 47,5mm x 65,5mm Certificate E-mark IP69K ECE 118 ES-95400-10 (analog DIN EN ISO 9227) IEC 60068-1:2013 / DIN EN 60068-1 VDE 0468-1:2015-09 IEC 60068-2-11:1981 DIN EN 60068-2-11:2000-02 MBN LV 124-2:2013-08
