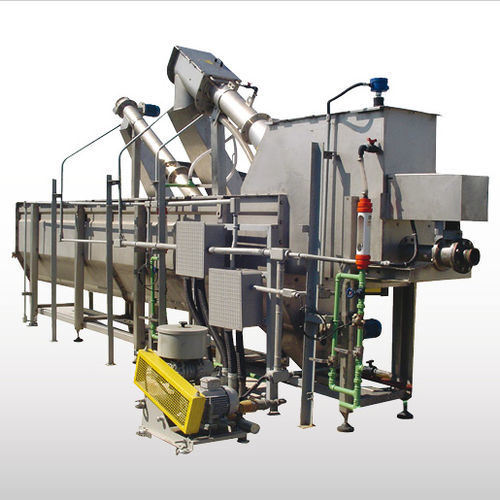

Screw slurry separator TSB 2-3

WASTEMASTER TSB2/3 efficiently carries out up to three different processes: de-watering and compacting of screened solid waste, separation of sand and removal of floating greasy matter. Description The WASTEMASTER TSB 2/3 carries out up to three different processes: de-watering and compacting of screened solid waste, separation of sand and removal of floating, greasy matter. Function Sewage from septic tanks / cesspools / interceptors or industrial plants collected by special purge tankers has to be pre-treated before being introduced into any kind of purification system. The process consists of the removal of solids, sand/grit and greasy matter which are all present in the sewage in order to avoid overloading of the treatment plant. Features Flow rates of up to 30 litres per second (63.5 cfm) Inlet screen mesh: 5, 6, 7 mm Sand separation with TSB-2/3: 90% particle size ≥ 200 μm Grease removal with TSB-3 Up to 35% solids volume reduction Modular design Benefits No jamming or locking even with fibrous products thanks to shaftless spirals Volume reduction of solids of up to 40% Absence of internal bearings Low r.p.m. Possible discharge into plastic bags Special long-life screw brushes Compact design Perfect for over-ground installation especially where space is limited; no civil works required Low investment and maintenance costs
