Slide gate PAR

metal

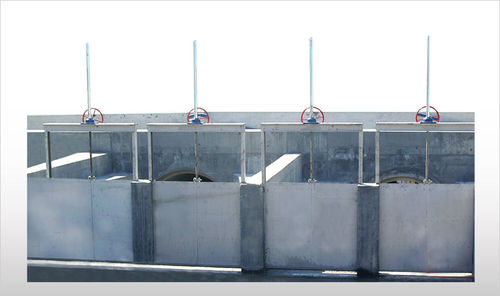

PAR Penstocks are used in both municipal and industrial waste water treatment plants to isolate a piece of equipment or a parts of a plant. Description PAR Penstocks mainly consist of a steel frame, a steel gate, a neoprene sealing system sliding inside the frame, a stem, and a manual drive system complete with control wheel. Function PAR Penstocks are regularly used for a number of operations in both municipal and industrial waste water treatment plants. Generally they serve the purpose of: •Isolating a piece of equipment; •Shutting off a whole part of a plant; •Controlling water level and / or flow rates. PAR Penstocks are fitted into walls (to close circular, square or rectangular openings/windows) or into channels (with frame enclosed in the concrete). In case of large gate sizes PAR Penstocks are usually equipped with a gear reduction unit complete with electric actuator. Features Different gate sizes up to 2 m wide and 2 m high available 3 or 4 side sealing system (neoprene hardness 60 Shore) Gate thickness: 6 mm TPN pitch stem – minimum thickness: 30 mm Hot dip-galvanised carbon steel / 304 L / 316 L SS Benefits User-friendly Robust design Wide range of applications and sizes Accessories Gearbox complete with hand wheel Electric actuator complete with limit switch, torque limit switch, position sensor, emergency for manual hand wheel, protection degree IP 65 Electric actuator ON/OFF Electric actuator with 4-20 mA signal Electric actuator with Profibus inverter
