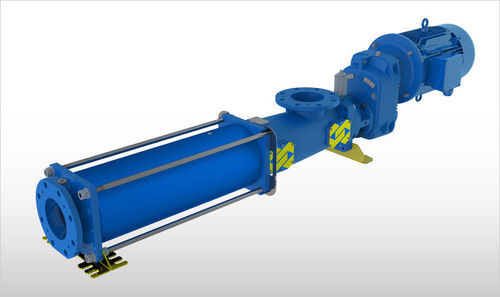

Slurry pump PCP series

self-primingprogressive cavityelectric

The CHIOR PCP pump is designed for the transfer of liquids, including those with high viscosity, with or without suspended solids. It ensures effective pumping of non-homogeneous liquids, making it ideal for water treatment plants, biogas plants, and farms. Description: The CHIOR PCP is an electric motor-driven progressing cavity pump, consisting of a rotating rotor and a fixed stator, which serve as the primary conveying elements. The rotor is a single-threaded, elongated round-thread screw driven by the drive unit via a joint. As a positive displacement pump, it is designed for the efficient and precise transfer of fluids, ranging from thin liquids to highly viscous substances. Function: The PCP pump range offers various accessory kits, making it versatile for a wide range of applications. CHIOR PCP pumps can be installed in different configurations to meet specific requirements. Features: - Max. slurry temperature: 55 °C - Max. solids size: 12 ~ 24mm - pH of treated liquid: 6 ~ 9 - IE3 WAM electric motor for enhanced energy efficiency - Parallel axis WAM gear reducer with built-in bearing bracket to absorb radial and axial forces - Double-acting oil-filled cartridge seal for improved durability - Universal joint surrounded by fibre-reinforced, clamped-on sleeve for quick and easy maintenance - Cardan joint easily replaced by pushing out the bolt through 4 maintenance openings - Rotor made of hardened tool steel, resistant to abrasion and coarse-grained materials - Rotor with built-in cutting blades made of hardened tool steel for efficient shredding - Innovative technical solution for both shredding and mixing, as well as flow intensification - Low-wear NBR stator can be quickly and efficiently replaced using 4 threaded ends - Self-priming capability up to 9m (in clear water) - Dry-running protection provided by a drilled bore in the stator - Pressure sensor device for monitoring pressure levels Benefits: - Sturdy design ensuring high durability for long-lasting performance - Easy maintenance with large openings, multiple drains, and cleaning connections for efficient upkeep - High suction capacity and effectiveness thanks to optimised pumping units - Optimised design enabling continuous, low-pulsation delivery, minimising turbulence and clogging - Space-saving solution with compact, one-piece design for efficient use of space - Modular design offering high flexibility, reducing the need for spare parts and enabling easy customisation Options: - Pressure sensor with ceramic membrane G¾ Solutions by Industry: Livestock Breeding (Manure Treatment) Solutions by Technology: Biogas Plant Equipment Technical Specifications / Features: - Max. slurry temperature: 55 °C - Max. solids size: 12 ~ 24mm - pH of treated liquid: 6 ~ 9 - IE3 WAM electric motor - Parallel axis WAM gear reducer - Double-acting oil-filled cartridge seal - Universal joint with fibre-reinforced sleeve - Cardan joint easily replaceable - Rotor: hardened tool steel, abrasion-resistant - Rotor with cutting blades - Low-wear NBR stator, quick replacement - Self-priming up to 9m (clear water) - Dry-running protection - Pressure sensor device Benefits: - Sturdy, durable design - Easy maintenance - High suction capacity - Continuous, low-pulsation delivery - Space-saving, compact design - Modular, flexible, easy to customise Options: - Pressure sensor with ceramic membrane G¾
