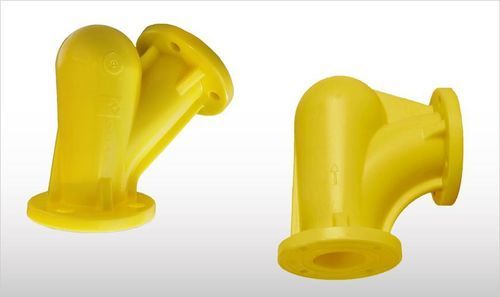

Elbow irrigation fitting EXTRABEND

plastic

EXTRABEND are innovative, polymer cast short radius Pipe Elbows inserted as a link in pneumatic conveying ducts. Their special geometry enables diversion of the material flow at minimum wear due to a dead zone at the point of diversion. Product Details - EXTRABEND are short radius Pipe Elbows that are inserted as a link in pneumatic conveying ducts. They are manufactured from a one-piece SINT engineering polymer cast. Their special geometry enables diversion of the material flow at minimum wear due to a dead zone at the point of diversion. Function - Patented EXTRABEND Pipe Elbows offer a substantially innovative geometry suitable aiming at wear reduction during operation in all types of dilute phase pneumatic conveying systems. - The body cavity next to the point of diversion generates an internal turbulence of the material which protects the pipe elbow from wear caused by the material travelling through the duct. Features - SINT engineering polymer-cast body design - Different qualities of SINT engineering polymer available for handling plastic pellets, granules, sand or fine, abrasive or chemically highly aggressive powders - PN-type connecting flanges Benefits - Elasticity of SINT ensures conveying of material without particle breakdown, grinding or jamming - Considerable reduction of flow resistance, consequently energy saving pneumatic conveying - Lightweight and durable - Ex-stock delivery Characteristics / Technical Specifications - Product type: Anti-Wear Pipe Elbows - Material: SINT engineering polymer (various qualities) - Application: Pneumatic conveying ducts, suitable for plastic pellets, granules, sand, fine, abrasive or chemically aggressive powders - Connection: PN-type flanges - Design: Short radius, one-piece cast - Special geometry for minimum wear - Patented internal turbulence for wear protection
