Drum screen FTR

compacting

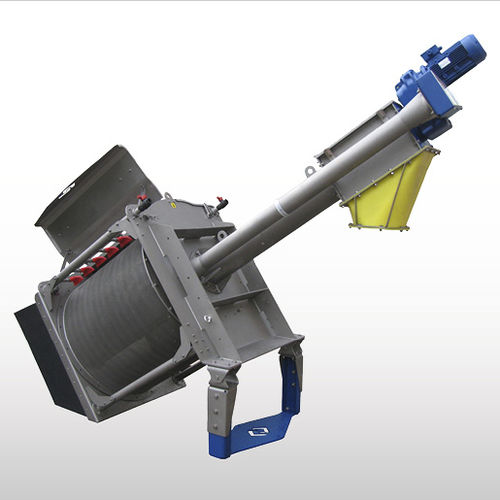

WASTEMASTER FTR is a rotating drum screen designed to combine separation of solids present in effluents with compacting and de-watering of the screenings thus obtained. Description WASTEMASTER FTR is a rotating drum screen designed to combine separation of solids present in the effluent with compacting and de-watering of screenings thus obtained. WASTEMASTER FTR consists of a rotating drum screen basket, a conveyor screw (with self-cleaning SINT drainage liner) and, as an option, a compacting module. WASTEMASTER FTR is a space-saving machine that combines multiple functions in one unit only: screenings separation, drainage, conveying and de-watering. Depending on the screen size of the drum and screen mesh dimensions, flow rates of up to 2,000 litres per second can be obtained. Function The conveyor screw consists of a shaftless spiral which collects the solids from the bottom of the screen conveying them without any risk of clogging. The compactor in the upper part, equipped with a washing section for diminishing organic fractions, uses the conveyor screw for compacting and de-watering of the screenings. Features Fabricated parts entirely manufactured from 304 L / 316 L SS Shaftless conveyor screw manufactured from 304 / 316 SS or special high resistance steel Perforated or wedge wire drum screen in various mesh sizes Versatile unit for concrete channel installation No outlet end bearing, no intermediate bearings Solids extraction of up to 15 m3/h Self-supporting drum and extracting screw Single drive unit Benefits High flow rates Obstacle-free inlet SINT liner and jagged screw flight for high removal rate with difficult materials such as fibres
