Waste treatment system PVD

water

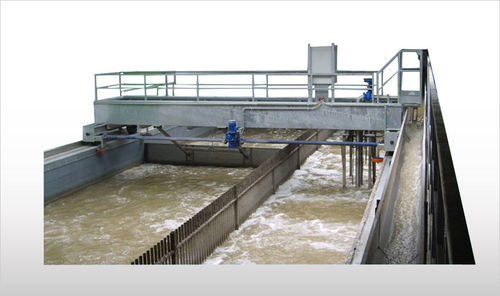

PVD Grease and Grit Removal Travelling Bridges are used to remove grease and grit from rectangular tanks in both municipal and industrial waste water treatment plants. Function PVD Grease and Grit Removal Travelling Bridges consist of a movable truck lying on two traction trolleys. One surface scraper and one bottom scraper are installed underneath the truck. The bridge is operated by a central gearbox connected to trolley drive wheels. The tank is divided in two main parts: one for grit settling, the other one for grease collection. An air injection system (not supplied) installed inside the grit channel generates a circular movement, thus separating organic and floating particles from the grit. By this movement scum is conveyed into the grease collecting channel, while grit continues to settle. The bridge travels back and forth. Travelling one way, it conveys the settled grit into the grit collection hopper through the bottom scraper. Running in the opposite direction it collects scum and floating particles by means of a surface scraper. The scrapers are operated by one gear motor only.
