Stainless steel heat exchanger SCF

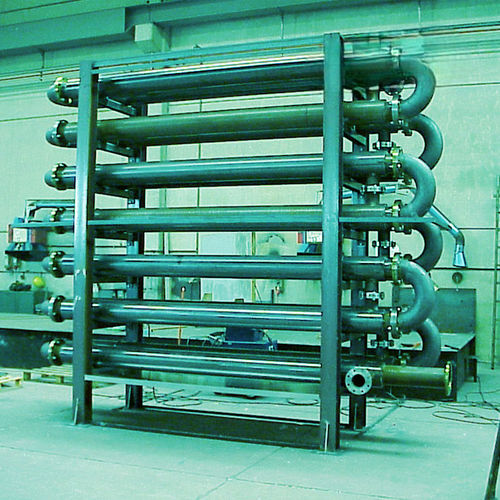

Description The SCF heat exchanger for biological sludge is installed to maintain a constant digester operating temperature and to prevent sudden thermal changes greater than 2–3 °C. It consists of a set of concentric pipes joined with 180° elbows. Sludge circulates in the internal piping while water runs externally in counter-current, acting as a thermal flywheel. Typical inlet sludge temperature is 30–32 °C and outlet sludge temperature is 37–40 °C. Sludge velocity inside the exchanger is approximately 1.5 m/s. Maximum heat exchange capacity is about 22,500 kcal/m²·h. Vent and drain valves located at the top and bottom piping sections ensure efficient operation. The exchanger is completely demountable to allow easier internal cleaning operations. Standard construction is carbon steel; on request it can be supplied entirely in stainless steel or as a hybrid with internal stainless steel tubes and external carbon steel tubes.

Category / Typology
SLUDGE / HEAT EXCHANGER

Strengths

• High heat efficiency
• High heat exchange capacity
• Compact overall dimensions

Characteristics / Technical specifications

• Model: SCF
• Function: maintain constant digester temperature; prevent sudden thermal variations > 2–3 °C
• Construction: set of concentric pipes with 180° elbows
• Flow arrangement: sludge inside internal piping; water external, counter-current
• Heat flywheel function provided by external water circuit
• Inlet sludge temperature: ~30–32 °C
• Outlet sludge temperature: ~37–40 °C
• Sludge velocity inside exchanger: ~1.5 m/s
• Maximum heat exchange capacity: ~22,500 kcal/m²·h
• Vent and drain valves: positioned at top and bottom piping sections for efficient operation
• Maintenance: fully demountable for internal cleaning
• Standard material: carbon steel; options: full stainless steel or hybrid (internal stainless / external carbon steel) on request
