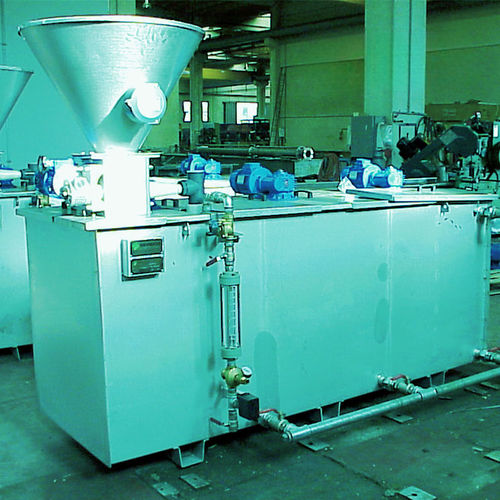

Automatic dosing unit PDPA

Description
The PDPA automatic polyelectrolyte preparation and dosing unit comprises a rectangular tank divided into three compartments: a dilution compartment, a polyelectrolyte mixture ageing compartment and an ageing/storage compartment. Once the target concentration (0.05%–0.5% w/w) is set, the unit automatically doses dilution water and polyelectrolyte; the outlet solution can be further diluted in the site network if required. The unit includes alarm functions for dosing screw failure, dilution water shortage, insufficient hopper level and stirrer malfunction. Standard construction is stainless steel.

Category / Typology
Category: SLUDGE
Typology: PREPARATION

Strengths

• Fully automatic preparation and dosing process
• Controlled and homogeneous polyelectrolyte dilution
• Integrated alarm systems for operational safety

Technical specifications

• Tank divided into three compartments: 1) dilution compartment, 2) polyelectrolyte mixture ageing compartment, 3) ageing and storage compartment
• Dilution compartment: polyelectrolyte loading hopper, micro-screw batcher with variable speed drive, high-speed mixer for initial mixing, dilution water inlet system with solenoid valve, flow meter and pressure relief
• Ageing compartment: slow-speed agitator, bottom suction and drain system
• Storage/ageing compartment: slow-speed agitator, suction and discharge system for the prepared polyelectrolyte solution
• Each agitator: two impellers on the shaft, each impeller fitted with four inclined blades
• Automatic preparation and dosing based on the set concentration (0.05%–0.5% w/w)
• Outlet solution may be further diluted in the site network if required
• Alarm systems for dosing screw failure, dilution water shortage, insufficient hopper level and agitator malfunction
• Standard materials: stainless steel construction
