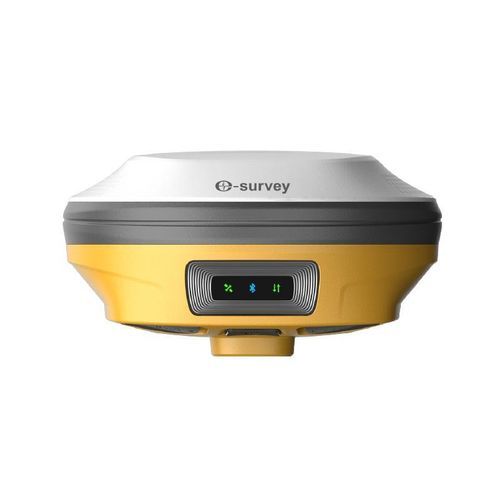

GNSS receiver eRTK20

LTE4GGLONASS

Product Overview The eSurvey eRTK20 GNSS receiver combines GNSS, IMU, wide-angle dual cameras, and a compact design to dramatically improve surveying efficiency. The CAD AR visual stakeout can increase project stakeout efficiency by 40%. With inbuilt radio (Tx and Rx) and a 60° inclination IMU function, the eRTK20 is ideal for any survey scenario. CAD AR Stakeout: Improved Efficiency - CAD drawings are directly marked on the Surpad interface, eliminating the need to select each point individually. - The CAD AR stakeout is a highly effective tool for optimizing stakeout operations and simplifying complex construction tasks in various scenarios. - The eRTK20 improves stakeout productivity by 40% by combining CAD base maps and augmented reality (AR) visualization. Max 60° Tilt Survey: A Different Way of Working - Accurately measure points while standing or walking without leveling the pole. - Focus on where the pole tip should go, especially during stakeouts. - Conveniently conduct surveys in difficult-to-reach areas such as building corners and slopes. - No need to worry about the movement of the pole when measuring, as long as it remains steady. Multi-Constellation and Multi-Frequency - With 1408 GNSS tracking channels, it ensures robust and reliable accuracy while being extremely resistant to multipath effects and interference. - Supports all GNSS signals as standard, including GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, and L-Band. Tx/Rx UHF Modem and 4G Modem - The built-in worldwide 4G Network and Tx/Rx UHF modem enable eRTK20 to transmit GNSS corrections seamlessly regardless of the operating environment. - Compatible with traditional major radio protocols. Technical Specifications / Features - Model: eRTK20 - Type: Visual Stakeout GNSS Receiver - GNSS tracking channels: 1408 - Supported constellations: GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, L-Band - IMU: 60° inclination support - Dual wide-angle cameras - Built-in Tx/Rx UHF modem - Built-in worldwide 4G modem - AR visual stakeout with CAD integration - Compact design
