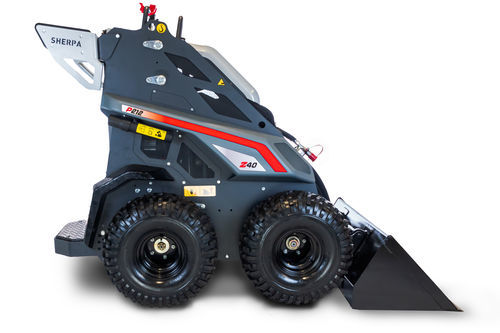

Rubber-tired loader SHERPA Z40

crawlercompact

Overview
The SHERPA Z40 combines compact design (only 114 cm wide) with serious power. Equipped with the Honda GX690 engine (22 hp / 16.5 kW), the machine handles demanding tasks across agriculture, landscaping, construction and paving. Notable for its high lifting capacity relative to machine weight. From model year 2025: available with rubber tracks instead of wheels (technical specifications may vary).

Highlights

• Compact width: 114 cm
• Engine: Honda GX690 (22 hp / 16.5 kW)
• Optional rubber tracks (from model year 2025)
• High lifting capacity relative to machine weight
• Suitable for agriculture, landscaping, construction and paving professionals

Downloads

• Brochure (PDF)
• Technical specifications (PDF)

Technical specifications

• Model: SHERPA Z40
• Brand: SHERPA
• Machine width: 1140 mm
• Operating weight: 813 kg (with standard tires)
• Engine: Honda GX690 — 16.5 kW / 22.1 hp
• Max. RPM: 3600 rpm (adjusted 3000 rpm)
• Battery voltage: 12 V
• Speed: 0–6 km/h (infinitely variable)
• Max. height pallet forks: 2051 mm
• Tipping height: 1700 mm
• Bucket angle (down): 28º
• Bucket dump angle: 35º
• Distance front wheel to bucket tip: 50 mm
• Ground clearance: 188 mm
• Wheelbase: 657 mm
• Machine length (folded footplate): 1519 mm (1345 mm folded)
• Machine length with bucket: 2075 mm
• Approach angle: 23.5º
• Machine height: 1495 mm (total max height 2590 mm)
• Turning radius: 1664 mm (with bucket 2208 mm)
• Breakout force: 726 kg
• Push and pull force: 580 kg (depending on tire choice)
• Hydraulics (drive / working): 42 / 190 l/bar
• Hydraulic tank capacity: 42 l
• Standard tires: 20x11.00-8 wide tractor tread
• Drive system: Hydrostatic via 4 hydraulic wheel motors
• Service brake: Hydrostatic via 4 hydraulic wheel motors
• Steering: Skid steering
• Attachments: compatible with SHERPA Z-series attachments (forks, trays, brushes, demolition hammers, drills, clamps, scrapers, vacuum units, towing hooks, etc.)
• New option (from model year 2025): available with rubber tracks instead of wheels (specifications may vary)
