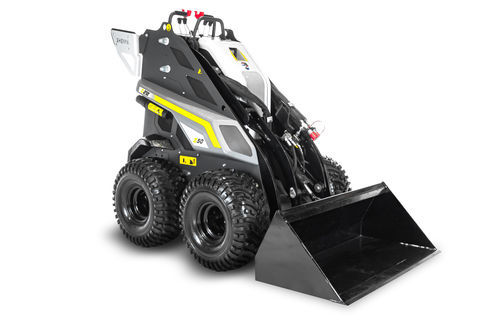

Rubber-tired loader SHERPA Z50

crawlercompact

Overview
The SHERPA Z50 is the most powerful model in the Z-series compact skid-steer loader range. Equipped with a Kubota D7902 diesel engine (18 kW / 25 HP) and a compact transport width of 1140 mm, it is designed for demanding industrial, construction and landscaping tasks. From model year 2025 the Z50 is also available with rubber tracks as an alternative to standard tires (affects technical specifications).

Key features

• Most powerful model in the Z-series
• Kubota D7902 diesel engine — 18 kW / 25 HP
• Compact width: 1140 mm for access in narrow spaces
• Hydrostatic drive via four hydraulic wheel motors
• Available with rubber tracks from model year 2025 (specifications change)

Downloads
Brochure (PDF); Technical specifications (PDF).

Dimensions (mm)
Max. height pallet forks: 2051
Max. tipping height: 1700
Bucket angle (down): 28º
Bucket dump angle: 35º
Distance front wheel to bucket tip: 50
Ground clearance: 188
Wheelbase: 657
Machine length (folded footplate): 1519 (1345)
Machine length with bucket: 2075
Approach angle: 23.5º
Machine height: 1495
Total max. height: 2590
Width: 1140
Turning radius: 1664
Turning radius with bucket (112 cm): 2208
Operating weight: 862 kg (with standard tires)

Technical data
Engine - Manufacturer: Kubota; Type: D7902; Power: 18 kW / 25 HP; Max. RPM: 3600 1/min; Set RPM: 3000 1/min; Number of cylinders: 3; Cooling system: Liquid cooled; Fuel type: Diesel; Fuel tank capacity: 15 l

Electric system - Voltage: 24 V; Battery capacity: 45 Ah

Speed - Max. speed: 0–6 km/h (infinitely variable)

Performance - Breakout force: 726 kg; Push/full force: 515 kg; Driving & working hydraulics: 42 l/min at 190 bar; Hydraulic tank capacity: 42 l

Tires - standard: 20x11.00-8 wide tread tires

Drive system - Hydrostatic via 4 hydraulic wheel motors

Brakes - Service brake: Hydrostatic via 4 hydraulic wheel motors

Steering - Skidsteering

Key specifications

• Model: SHERPA Z50
• Engine: Kubota D7902, 18 kW / 25 HP, 3 cylinders, liquid cooled
• Width: 1140 mm
• Operating weight: 862 kg (standard tires)
• Fuel tank capacity: 15 l
• Hydraulic tank capacity: 42 l
• Max. tipping height: 1700 mm
• Max. speed: 0–6 km/h (infinitely variable)
• Drive: Hydrostatic via 4 hydraulic wheel motors
• Tires (standard): 20x11.00-8 wide tread
• Available with rubber tracks from model year 2025 (affects specifications)
