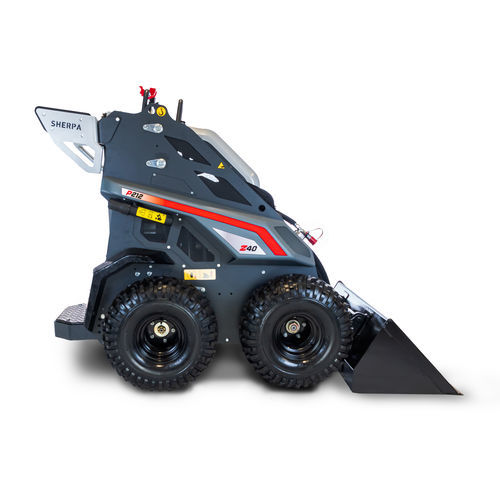

Rubber-tired loader Z40

compactmini

Overview
The SHERPA Z40 is a compact skid steer mini loader (1,140 mm width) designed to deliver high lifting capacity relative to its operating weight. Fitted with a Honda GX690 petrol engine (16.5 kW / 22.1 hp), it is suited to construction, landscaping, agriculture and paving applications. From model year 2025 the Z40 is also available with rubber tracks instead of wheels (technical specifications may vary).

Highlights

• Compact width: 1,140 mm
• Honda GX690 petrol engine (16.5 kW / 22.1 hp)
• Optional rubber tracks available from model year 2025
• High lifting and breakout force relative to machine weight

Dimensions in mm
Max. height pallet forks: 2051
Tipping height: 1700
Bucket angle (down): 28º
Bucket dump angle: 35º
Distance front wheel to bucket tip: 50
Ground clearance: 188
Wheelbase: 657
Machine length (folded footplate): 1519 (1345)
Machine length with bucket: 2075
Approach angle: 23.5º
Height machine: 1495
Tot. max. height: 2590
Machine width: 1140
Turning radius: 1664
Turning radius with bucket (112 cm): 2208

Operating weight: 813 kg (with standard tires)

Technical specifications
Engine
Type: Honda GX690
Power: 16.5 kW / 22.1 hp
Max. RPM: 3600 rpm
Adjusted RPM: 3000 rpm

Battery
Voltage: 12 V

Speed
Speed: 0–6 km/h (infinitely variable)

Performance
Breakout force: 726 kg
Push and pull force: 580 kg (depending on tire choice)
Drive and working hydraulics: 42/190 l/bar
Hydraulic tank capacity: 42 l

Tires
Standard: 20x11.00-8 wide tractor tread tires

Drive system
Hydrostatic via 4 hydraulic wheel motors

Brakes
Service brake: Hydrostatic via 4 hydraulic wheel motors

Steering
Steering: Skid steering

Attachments
Compatible with a wide range of SHERPA attachments: brushes, brooms, clamps, demolition hammers, drills, forks, lifting arms, milling cutters, pitch forks, scrapers, tyres, towing hooks, trays, vacuum units, etc.

Characteristics / technical specifications

• Brand: SHERPA
• Model: Z40
• Engine: Honda GX690 (petrol)
• Engine power: 16.5 kW / 22.1 hp
• Max RPM: 3600 rpm (adjusted 3000 rpm)
• Battery: 12 V
• Drive: Hydrostatic via 4 hydraulic wheel motors
• Speed: 0–6 km/h (infinitely variable)
• Drive & working hydraulics: 42/190 l/bar
• Hydraulic tank capacity: 42 l
• Breakout force: 726 kg
• Push/pull force: 580 kg (depending on tires)
• Standard tires: 20x11.00-8 (wide tractor tread)
• Operating weight: 813 kg (with standard tires)
• Machine width: 1140 mm
• Machine height: 1495 mm
• Total max height: 2590 mm
• Machine length (folded footplate): 1519 mm (1345 mm)
• Machine length with bucket: 2075 mm
• Wheelbase: 657 mm
• Ground clearance: 188 mm
• Max. height pallet forks: 2051 mm
• Tipping height: 1700 mm
• Turning radius: 1664 mm (with bucket: 2208 mm)
• Bucket angles: down 28º / dump 35º
• New option: rubber tracks available from model year 2025
