Grain silo
concretegalvanised steelflat-bottom

Grain silo - SILOS CÓRDOBA S.L. - concrete / galvanised steel / flat-bottom
Grain silo - SILOS CÓRDOBA S.L. - concrete / galvanised steel / flat-bottom
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Application
for grain
Material
galvanised steel, concrete
Form
discharge, flat-bottom
Volume

Max.: 83 m³
(2,931 ft³)

Min.: 45 m³
(1,589 ft³)

Description

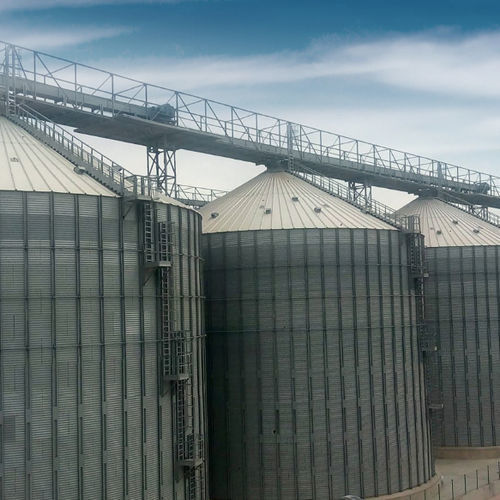

Our flat-bottom silos are utilized for the long-term storage of large quantities of grain, seeds, and granulated products. We offer a range of concrete base silos, covering capacities from 83 m3 to 45,055 m3, with diameters ranging from 4.58 m to 41.25 m. Explore our flat bottom silos: GALVANIZED STEEL S450GD Manufactured with galvanized steel S450GD, featuring high elastic tolerance and a Z600 minimum coating equivalent to 600 g/m2 of zinc. NEOPRENE WASHERS Neoprene washers ensure a waterproof seal. ROOF STRUCTURE Models with a diameter exceeding 12.22 meters include a galvanized cross-section roof structure. STAIRS AND PLATFORMS Stairs and platforms are compliant with regulation UNE-EN ISO 14122. BOLTS Our product range features 8.8 quality dichromate high tensile bolts. STIFFENERS Galvanized reinforced exteriors, irrespective of thickness, offer excellent anti-corrosion properties. EUROCODIGO 1 Our method for calculating thickness exceeds the standards set by EUROCODIGO 1. Flat bottom silos accesories: BOBCAT DOOR Ideal for high-capacity silos unloaded using light Bobcat machinery, ensuring complete product residual slope emptying. Features a rigid frame with load-transmitting pillars and horizontal reinforcements. VENTILATION GRILL Framework comprised of perforated galvanized steel grating, offering a minimum standard ventilation surface of 15%, extendable up to 100%. Reinforced ventilation grating is available for drive-thru machinery. LATERAL UNLOADING SYSTEM Facilitates truck loading directly from the silo without additional machinery. Includes a manual drive discharge gate.
