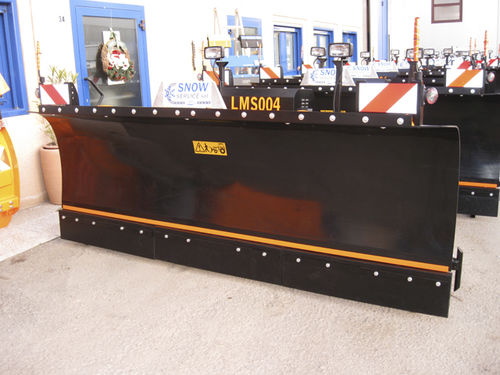

Snow blade on 3-point tractor front linkage POLYTECH PT Series
with hydraulic adjustment

snow blade on 3-point tractor front linkage
snow blade on 3-point tractor front linkage
snow blade on 3-point tractor front linkage
snow blade on 3-point tractor front linkage
snow blade on 3-point tractor front linkage
snow blade on 3-point tractor front linkage
Add to favorites
Compare this product


Characteristics

Other characteristic
on 3-point tractor front linkage, with hydraulic adjustment
Blade width

245 cm, 260 cm, 278 cm
(96 in, 102 in, 109 in)

Description

Classification / General and building materials Features Snow plow truck with GVW between 80 to 150 quintals and agricultural tractors with power between 70 and 110 hp with a weight ≤ 40 quintals. Equipment snow removing with a supporting steel structure and counter-plate quick fit conforms to Statement DIN 76060 / A, or alternatively, the coupling structure to 3 specific points for front lift with 3 points typical of the agricultural machines. Aileron front in a single piece made from sheet HDPE polyethylene. Knife scraping into three independent sectors, available in wear-resistant steel or neoprene (rubber). mechanical adjustment of the angle of the ground attack (incidence). shockproof system agent, using steel springs, exclusively on each of the wiper blade segment. These, in phase of collision with a rigid element, flex backwards (against the direction of travel) and, after passing the obstacle, are rotated in the vertical working position by the two pairs of springs. bearing structure in stove-enamelled steel with special anti-rust treatment and final enamel RAL 2011 (orange). Aileron HDPE black. overpressure valve for shock side impact, with fittings and pipes R2 unified couplings. Operation Hydraulic, with hydraulic cylinders for tilting left / right and up / down. Sources of energy Electro-hydraulic power to 24 Volt can be installed on request (optional), the implement Snow. Alternatively, special hydraulic plant realized on the thrust means (requires 2 double-acting one with floating position).
