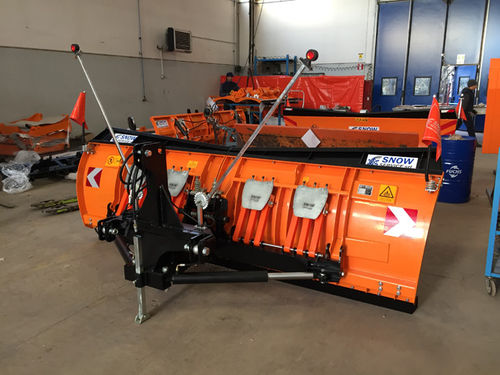

Straight snow blade CS68/6 S Series
with hydraulic adjustment

straight snow blade
straight snow blade
straight snow blade
straight snow blade
straight snow blade
straight snow blade
straight snow blade
Add to favorites
Compare this product


Characteristics

Form
straight
Other characteristic
with hydraulic adjustment
Blade width

Max.: 312 cm
(123 in)

Min.: 213 cm
(84 in)

Description

Classification / General and building materials Features Snow plow for tractors equipped with front linkage 3-point, with power> 80 cv. Equipment Snow Removing built entirely of steel with high mechanical characteristics, with special coupling structure for linkage to three unified points, typical of agricultural tractors. Front shear in two independent sectors with scraping knife wear steel or, on request, vulkollan. shockproof system consists of special elastomers, in traction agents, with total reversal to the front of each sector and recall of the same in the vertical working position after passing the obstacle. mechanical system of harpooning (hammers restraint) that haling the shear in the vertical position during normal conditions of snow removal. central mechanical system, which allows an angle of transverse pitch of + 5 ° Painted in the oven, with special anti-rust treatment and final enamel RAL 2011 (orange). Overpressure valve for shock side impact, with fittings and pipes R2 unified couplings. Operation Hydraulic, with hydraulic cylinders for tilting right / left. Sources of energy Appropriate hydraulic system already on the thrust means (should be a double acting valve). Commands for handling Commands (levers or joystick) already on the way. Flags basic version, the foot parking, pressure relief valve on the tilt circuit right / left and knife scraping wear steel.

VIDEO
