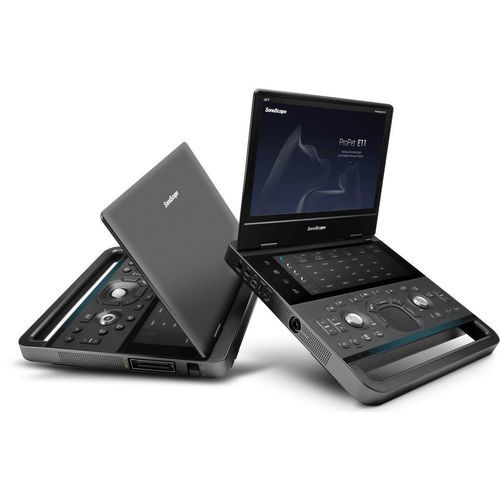

On-platform veterinary ultrasound system ProPet X11/E11

portableportable, with trolleyfor pets

Overview
Smart imaging solution for multi-species veterinary diagnostics. The ProPet X11/E11 is a portable ultrasound on the C-Field+ platform offering a 15.6-inch monitor and 12.3-inch touchscreen, designed to support cardiac, abdominal, musculoskeletal and emergency workflows across animal sizes.

Key Intelligent Features

• SonoAssistant: step-by-step exam guidance and customizable scanning protocols to standardize procedures.
• SonoHelp: veterinary-specific reference planes and scanning guidance with support for user-added images and videos.
• SonoFast: integrated AFast, TFast and VetBlue protocols to streamline emergency assessments.
• SonoMeasure: built-in measurement ranges per animal size and alerts for predefined clinical thresholds.
• SonoTransfer: direct transmission of PDF reports, images and cine loops to a shared Windows folder.
• Dual-screen measurement: perform measurements via touchscreen without physical buttons.

Veterinary Workflow and Software

• Flexible exam mode with user-selectable animal types, transducers and presets; supports custom animal types and graphic exam icons.
• Comprehensive measurement and reporting tools covering reproduction, cardiac, MSK and more; includes Cornell & BSA formulas for animal-specific calculations.
• Extensive bodymarks and annotations: 200+ veterinary bodymarks, 120+ annotations, support for 20+ species.

Cardiac Imaging Capabilities

• Short-axis MQA with 2D speckle tracking for strain, velocity and displacement analysis.
• Improved visualization of pulmonary valve regurgitation with enhanced temporal and spatial resolution.
• Ventricular short-axis M-mode with AMM and M-mode post-processing.
• TDI PW mode for tissue Doppler assessment of myocardial motion and velocity.
• PW mode for pulmonary artery flow velocity measurement.
• Left ventricle long-axis B-mode for structural and functional assessment.

Abdominal & Superficial Imaging

• Contrast imaging (Contrast HFR CEUS) to track microbubble movement and perfusion with improved temporal resolution.
• Strain elastography for real-time tissue stiffness assessment with color mapping on linear, convex and micro-convex probes.
• B-mode kidney imaging using C613 micro-convex probe for balanced resolution and penetration.
• FHR mode for enhanced sensitivity to low-velocity blood flow.
• High-resolution tendon and soft-tissue imaging for equine and small animal MSK assessments.
• High-frequency linear probe 18L-A for detailed superficial imaging.

Product Variants & Controls

• ProPet X11: trackball (button) operation option.
• ProPet E11: waterproof touchpad operation option.

Ergonomics & Mobility

• 15.6-inch monitor and 12.3-inch touchscreen.
• Compact ergonomic design with mobile trolley case and probe storage bag.
• Magnetic charging port and high-capacity mobile battery.
• Small probe slot adapted for veterinary probes; battery level display and touchscreen-designed workflow for rapid operation.

Additional Notes

• Direct transmission of PDF reports, images and cine loops to PC is supported.
• Designed for multi-species use with customizable exam presets and annotations.

Specifications / Technical details

• Platform: C-Field+ portable ultrasound platform.
• Monitor: 15.6-inch display.
• Touchscreen: 12.3-inch touch interface.
• Variants: ProPet X11 (trackball), ProPet E11 (waterproof touchpad).
• Supported probes: C613 micro-convex, high-frequency linear 18L-A, convex and linear transducers (micro-convex support).
• Key imaging modes: B-mode, PW, TDI, M-mode, 2D speckle tracking (MQA), Contrast HFR CEUS, Strain Elastography, FHR.
• Software features: SonoAssistant, SonoHelp, SonoFast, SonoMeasure, SonoTransfer, dual-screen measurement.
• Measurement/report tools: Cornell & BSA formulas; built-in measurement reference ranges by animal size.
• Annotation/bodymark support: 200+ veterinary bodymarks, 120+ annotations, 20+ species.
• Ergonomics & mobility: magnetic charging port, mobile trolley case with probe storage, high-capacity battery, small probe slot for veterinary use, battery level display.
• Approximate design references: listed dimensions/angles present on page (1150 mm, 830 mm, 15°, 30°).
