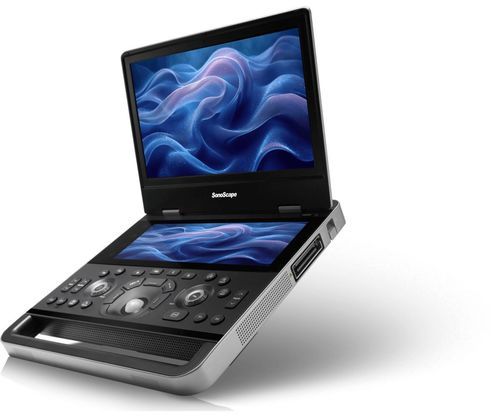

Portable Doppler veterinary ultrasound system X10

portable, with trolleyfor large animalsfor small animals

Overview
The X10 by SonoScape is a portable color Doppler ultrasound system designed to support core clinical workflows across radiology, obstetrics & gynecology, cardiology and specialty care. It combines essential imaging tools and ergonomic features to enable reliable examinations in a variety of care settings.

Flow Revealed, Details Defined

• Bright Flow: Provides 3D-like Color Doppler flow visualization without a volumetric transducer, improving delineation of vessel wall boundaries.
• FHR: Observes microvascular perfusion with high frame rates and enhanced sensitivity; includes respiratory motion compensation for clearer depiction of low-velocity flow.
• Micro F: Differentiates subtle blood flow from overlying tissue motion to improve sensitivity and spatial resolution in hemodynamic assessment.

Clinical Applications

• Radiology
• OB & GYN
• Cardiology
• Specialty care

Advanced Clinical Tools

• S-CV (PW & M): Real-time spectral Doppler measurement with automatic cardiac view identification and sample-volume placement.
• S-CV (2D meas.): One-click 2D cardiac measurements on frozen images with automated calculation of dimensions, areas and functional indices (e.g., EF).
• MQA: Myocardial motion analysis across multiple views, generating strain, strain rate, velocity and displacement curves.
• Stress Echo: Evaluation of cardiac function and perfusion under stress to aid detection of coronary disease and assessment of viability.
• ATI (Acoustic Attenuation Imaging): Quantitative assessment of liver steatosis via attenuation coefficient measurement.
• CEUS: Contrast-enhanced ultrasound for dynamic lesion perfusion assessment, combining MFl, MF Time and MFl Mix modes.
• Elasto: Strain elastography for qualitative tissue stiffness evaluation.
• 3D/4D Imaging, Auto OB, Auto NT: 3D/4D fetal visualization with automatic biometric measurements (BPD, HC, AC, humerus length) and automated nuchal translucency detection and measurement.

Design & Workflow Features

• Triple-vision configuration with a 12.3-inch LCD touchscreen plus a 15.6-inch LCD monitor for flexible display layouts.
• Compact trolley with adjustable height for improved ergonomics.
• Trackball with adjustable sensitivity for simplified measurements.
• Magnetic charging port to facilitate charging and protect connectors.
• Support for 1 to 4 probe extender to increase probe connectivity.
• Optional E-Pack battery extends runtime; up to 8 hours when combined with trolley batteries.

Technical specifications

• Model: X10
• Manufacturer: SonoScape
• System type: Portable color Doppler ultrasound system
• Key imaging technologies: Bright Flow, FHR, Micro F
• Clinical tools: S-CV (PW & M), S-CV (2D measurement), MQA, Stress Echo, ATI, CEUS, Elasto, 3D/4D Imaging, Auto OB, Auto NT
• Displays: 12.3-inch touchscreen; 15.6-inch LCD monitor (triple-vision capable)
• Probe support: 1 to 4 probe extender
• Battery: E-Pack extendable runtime up to 8 hours with trolley batteries
• Charging: Magnetic charging port
• Intended applications: Radiology, OB & GYN, Cardiology, Specialty care
