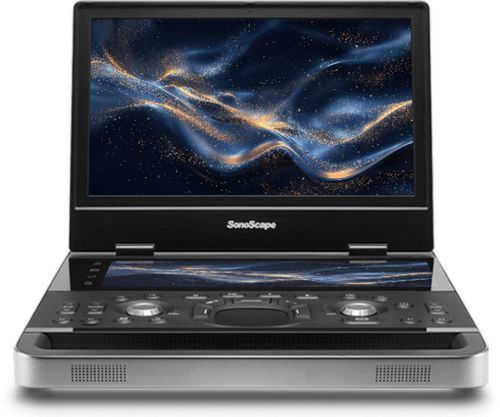

Portable veterinary ultrasound system E10

for large animalsfor small animalsfor farm animals

Overview
The SonoScape E10 is a portable color Doppler ultrasound system designed for point-of-care and clinical environments. It combines dual-display visualization and modular battery/probe configurations to support rapid assessment and continuous workflows in critical care, emergency and perioperative settings.

Key Features

• Probe Auto Wake up: automatically switches the probe and applies presets when the probe is lifted from frozen state.
• SonoExam: automatically records the entire scanning process for review and training.
• SonoPage: customizable single-page interface consolidating essential controls for simplified workflow.
• Voice Control: operate key functions remotely via voice commands to speed operations.
• SonoHelp: integrated education center with application references for clinicians.
• SonoFast: protocol management with built-in exams (e.g., eFAST) for faster scanning and one‑click status marking and annotation.
• S-VTI: automatic sampling volume placement, spectral tracing and result output with trend maps to assist diagnosis.
• S-IVC: continuous IVC diameter tracking during live scanning with high stability.
• Auto B-lines: real-time identification and counting of B‑lines with scoring to aid lung assessment.
• Auto Pleural Line: automated detection and measurement of pleural line thickness.
• Auto hyd. & asc.: automatic measurement of pleural effusion and ascites diameters with area/volume calculations.
• Airway Management Tutorials: training module to support airway ultrasound competency.
• Vis-Needle: enhanced needle tip visualization via improved echogenicity for safer procedures.
• S-MSK (Shoulder/Wrist): one-click acquisition of standard MSK views from cine loop with annotated anatomy.

Hardware & Design Highlights

• Triple-vision display concept: 15.6-inch LCD monitor plus a 12.3-inch LCD touchscreen for simultaneous review and control.
• Compact trolley option with adjustable height for ergonomic bedside use.
• Control panel membrane made of water-resistant material for easy cleaning and disinfection.
• Magnetic charging port to protect cables and simplify charging operations.
• Support for 1 to 4 probe extender configurations to cover multiple clinical indications.
• E-Pack battery option extends runtime; up to 8 hours when paired with trolley batteries for uninterrupted workflows.

Applications

• Critical Care
• Emergency Medicine
• Anesthesia
• Musculoskeletal (MSK)
• Vascular Access

Image Examples
FAST: upper right/left abdominal quadrant; brachial plexus; MSK—upper limb; CCA and jugular vein; intermuscular veins; cardiac PLAX; paediatric lungs (possible consolidation).

Technical Specifications

• Model: E10
• Brand: SonoScape
• Form factor: Portable color Doppler with compact trolley option
• Displays: 15.6" LCD monitor; 12.3" LCD touchscreen
• Battery: E-Pack extendable runtime; up to 8 hours with trolley batteries
• Charging: Magnetic charging port
• Probe support: 1 to 4 probe extender support
• Control panel: Water‑resistant membrane for cleaning/disinfection
• Workflow tools: Probe Auto Wake up, SonoExam, SonoPage, SonoFast
• Advanced auto-measurements: S-VTI, S-IVC, Auto B-lines, Auto Pleural Line, Auto hyd. & asc.
• Procedure aids: Voice Control, Vis-Needle, Airway Management Tutorials
• Primary clinical areas: Critical Care, Emergency, Anesthesia, MSK, Vascular Access
