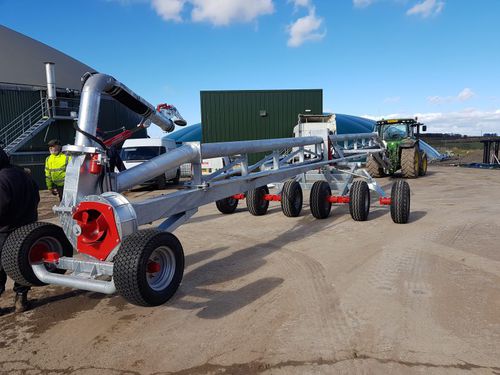

Inclined slurry mixer Mega Mix

PTO-drivenmobilewith cutter pump

This Trailed Mega Mix has been developed for lagoons with steeper banks, which require a deeper reach into the lagoon without needing a lot of horsepower to lift on 3-point linkage. This machine uses the same quality components and high class engineering as the Mega Mix and the Mega Mix Lagoon Pump; this has hydraulically operated wheels and hydraulic stabiliser legs. Key Features -Versatile range available from 12.5m (41ft) to 20m (65.6ft) -Fully galvanised metal finish for extended product life -Heavy duty centre frame design -Robust hydraulic depth control axle -Strong 55mm drive line with seven bearing assemblies -Unique bearing slurry seal protection -Special Storth cassette bearing and drive shaft wear collar -High output induction impellor, 18m3/min (4000 gal/min) -Simple mix or pump flexibility -Maintenance friendly central bearing grease bank -Endurance hardox wear kit and seal kit option available for increased durability in slurry containing sand System Advantages -Powerful solution for large lagoons -Proven design and operation for over 10 years -Manoeuvrable and flexible around lagoons and store -Replaceable wear parts -Adaptable for liner and covers
