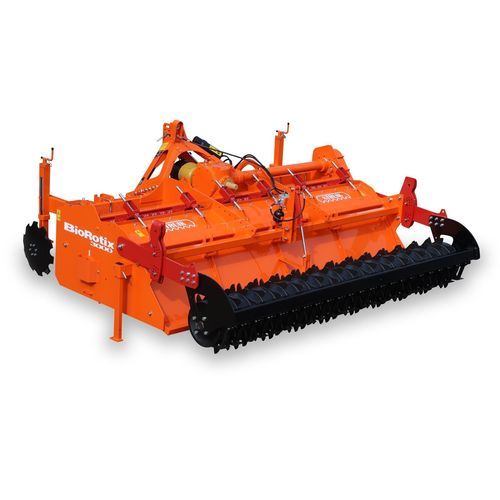

Mounted field cultivator BIOROTIX 3000

Description
The BIOROTIX overtop cultivator is designed to undercut old turf, prepare seedbeds for new turf, incorporate green manure and create optimal seedbeds for reseeding.

Working principle
The overtop cultivator rotor is fitted with 132 Widia hooks that rotate counter to the direction of travel. The hooks open the topsoil in small sections and reach a maximum depth of 16 cm, producing an airy top layer while preserving capillary action in subsurface layers to ensure water penetration during heavy rainfall. The hooks are mounted in a randomized sequence to ensure even soil distribution and eliminate jacking.

Soil processing and seedbed finish
The rotor throws loosened soil against an adjustable spring-steel bar rack that retains clods and crop residue. These materials fall to the bottom of the seedbed and are covered by a layer of finer soil thrown back by the rotor, forming a uniform basis for seeding. The extended rear side plates and the specially formed flat scraper plate keep the soil contained and consolidated for a level seedbed finish.

Characteristics / technical specifications

• Model: BIOROTIX 3000-OT
• Rotor with 132 Widia hooks
• Hook rotation: counter to direction of travel
• Maximum working depth: 16 cm
• Hooks mounted in random order for optimal soil distribution and zero jacking
• Adjustable spring steel bar rack to retain and throw soil back
• Clods and crop residue settle at seedbed bottom and are covered by fine soil
• Extended rear side plates and specially formed flat scraper plate for soil consolidation
