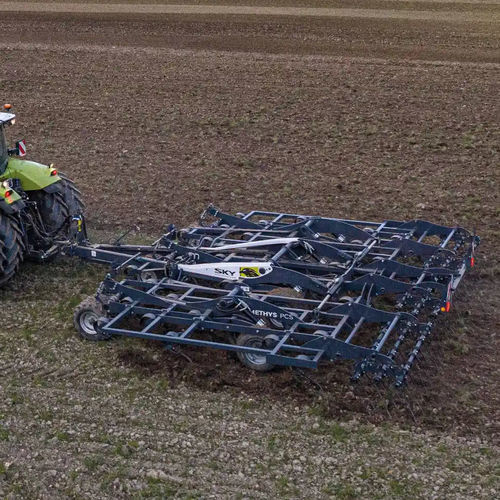

Towed field cultivator METHYS PCS series

with roller

Product overview
The SKY Methys PCS is a trailed stubble cultivator designed for conservation agriculture, providing controlled shallow tillage, high residue clearance and low energy use across multiple working widths and variants.

Key features

• Large horizontal and vertical clearance for reliable ground tracking
• High clearances to avoid blockages with heavy crop residues
• Penetration capacity for first‑pass stubble work even with large straw volumes
• Adjustable shallow working depth from 2 to 11 cm

Objectives of the redesign

• Reduce fuel consumption
• Enable 3 cm scalping across the full width to preserve surface residues
• Keep crop residues on the surface while avoiding blockages
• Operate effectively with heavy plant cover

Performance and operation
The machine delivers low power requirements and consistent scalping quality.

• Seven ground support points for accurate depth control and ground tracking
• Twelve depth-control wheels (model dependent)
• 3D control via isostatically supported chassis/extensions and a deformable structure
• Trailed design to minimise tractor-induced movements
• Indicative fuel consumption: approx. 6.5 l/ha first pass, 3 l/ha second pass

Technical data
SCALPER — METHYS PCS 3000 — METHYS PCS 4000 — METHYS PCS 6000
Working width (m): 3 | 3.93 | 6
Transport width (m): 3 | 2.50 | 2.50
Transport height (m): _ | 2.162 | 3.196
Number of teeth: 14 | 19 | 29
Working depth (cm): 2-11 | 2-11 | 2-11
Working speed (km/h): 6-10 | 6-10 | 6-10
Power requirements (hp): 80-100 | 110-150 | 150-190
Weight (indicative) (Kg): 1250 | 1950 | 2400

SCALPER — METHYS PCSWT 6000 — METHYS PCSWT 8000
Working width (m): 6 | 8
Transport width (m): 3 | 3
Transport height (m): 2.984 | 4
Number of teeth: 29 | 39
Working depth (cm): 2-11 | 2-11
Working speed (km/h): 6-10 | 6-10
Power requirements (hp): 110-210 | 190-270
Weight (indicative) (Kg): 5600 | 6300

Specifications

• Model range: METHYS PCS 3000 / 4000 / 6000; METHYS PCSWT 6000 / 8000
• Adjustable working depth: 2–11 cm
• Recommended working speed: 6–10 km/h
• Power range: 80–270 hp depending on model
• Number of teeth: 14–39 depending on model
• Design focused on conservation agriculture: large clearance, shallow precise tillage and low fuel use
