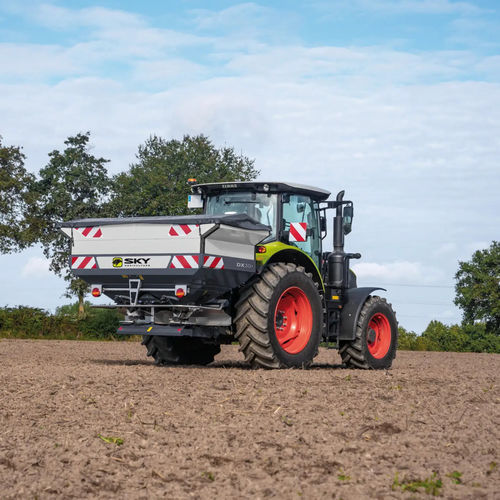

Mounted fertilizer spreader DX30+

solidgranularwith GPS

Product overview
DX30+ mounted fertilizer spreader: integral emptying for ZERO "dead" volume, no sensitivity to fertilizer hopper load and instant opening/closing, no blocking possible. Designed for precise spreading control and autonomy with electric control, weighing system and ISOBUS connectivity.

DX30+ at a glance :

• Working width: 12 to 36 m
• Hopper capacity: 1500 to 3000 liters
• Width adjustment by changing the feed point on the disc
• ISO 9001-certified construction quality
• Long-lasting paint

Inclined flow hatches: more than just a detail

• Integral drainage for ZERO "dead" volume
• No sensitivity to fertilizer hopper load
• Instant opening/closing without jamming

Adjustments and draining
Once the chute is in place, simply measure the distance indicated on the ruler and weigh the result. This same ruler then gives the correct trap setting.

• Maximum accessibility
• Quick-fit trunking, keyless
• No cumbersome handling

Spreading widths
With the DX30+ it is possible to reach 36 m with good quality fertilizer and 28 m for all fertilizers. Graduated sectors have been redesigned for comfort: large sectors for error-free width adjustment and full visibility of graduations.

Sky spreader width control
Works by modifying the point at which fertilizer falls onto the disc using an exclusive outlet chute. The drop point adjustment does not require any change in plate rotation speed nor touching the ejection blades.

Border fertilisation (tribord)
100% electric border control: electric operation from the cab without leaving the tractor, no hydraulic distributor. Zero broken grain: preserves fertilizer quality when modifying the drop point.

Weighing system and benefits
A recognized weighing system with dual weighing chassis, ultra-capacitive 10T load cell and 4 leaf springs. The SKY weighing system provides kilo-accuracy with automatic flow adjustment from the cab; single factory-calibrated stainless steel weighing cell protected by the weighing frame; integrated inclinometer for accurate measurement on slopes and inclines.

• Eliminates repeated flow tests
• 5-10% fertilizer savings
• In-cab display of weighing information

ECONOV flow control (section cut-off)
ECONOV 6-section cutterbar minimizes fertilizer overdosing on working widths from 18 to 36 m. Flow parameter action allows GPS-optimized distribution on edges and corners, reducing overdosing and improving field distribution; study shows fertilizer savings and reduced under-/over-dosed areas.

ISOBUS compatibility
DX30+ spreaders with weighing and electric control can be connected to a compatible ISOBUS Universal Terminal. Consoles available: Quartz 800 and Quartz 600 (UT functions only).

Warranty
7-year anti-perforation corrosion warranty offered for DX, X and XT fertiliser distributors (manufactured from 1 September 2019).

Technical specifications (excerpt)
TYPE: DX 30+ (variants) | Working width: 12-36 m | Flush hopper capacity: 1500 l / 2150 l / 2350 l / 3000 l | Overall width: 2.48 m / 2.48 m / 2.98 m / 2.98 m | Loading dimensions: 1.23 x 2.40 m / 1.23 x 2.40 m / 1.23 x 2.80 m / 1.23 x 2.80 m | Loading height: 1.06 m / 1.27 m / 1.29 m / 1.49 m | Weight (indicative) weighed version: 305 kg / 350 kg / 355 kg / 400 kg | Payload: 3,000 kg
