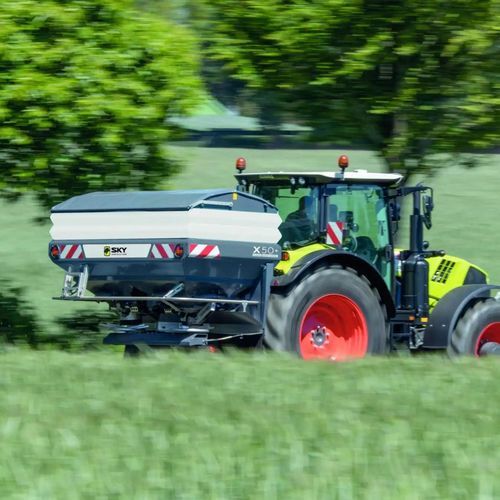

Mounted fertilizer spreader X 40+ ECONOV

granularcentrifugalwith GPS

Overview
ECONOV manages the actual curved centrifugal spreading pattern on mounted spreaders in the X40+ and X50+ ranges to ensure uniform distribution and reduce fertiliser use. Works with working widths from 12 to 50 m and hopper capacities up to 4200 l.

Main benefits

• Automates high‑risk operations and simplifies field setup
• Reduces fertiliser use by limiting over‑ and under‑application
• Ensures uniform distribution across the plot
• Supports large working widths and high hopper volumes for efficient coverage

SPEED CONTROL technology
SPEED CONTROL is a patented, speed‑adaptive system developed with IRSTEA and validated on the CEMIB test bench. It provides a 3D understanding of the fertiliser layer and adapts the spreading pattern to forward speed to preserve distribution quality at varying travel speeds.

Distribution precision and modulation
Right/left modulation combined with SPEED CONTROL improves dose accuracy: the spreader automatically modulates dose to right and left according to prescription maps, reducing intra‑plot heterogeneity and optimising yield potential.

ECONOV features

• Manages the curved shape of the centrifugal spread pattern (operates in curves)
• Infinite-width adjustment via an adjustable chute that changes the feed point on the disc
• No sprockets, plates or blades to handle during adjustment — settings made safely away from moving parts
• ISOBUS ECONOV controls up to 12 equal sections regardless of working width; sections open/close following the true spread shape

New hydraulic disc drive (New)
Optional hydraulic drive maintains constant disc speed independent of tractor engine rpm, allowing low engine speeds (example 1500 rpm) while preserving spreading quality. Available across X40+ and X50+ ranges.

Hopper sensors and accessories
Optional left/right hopper end sensors warn when one side is nearly empty — useful for GPS right/left modulation and ECONOV section cut‑off. Electric edge modes and X TRIBORD 3D options available for safe edge spreading from the cab.

Warranty
7‑year anti‑perforation corrosion warranty on DX, X and XT fertiliser distributors manufactured from 1 September 2019.

Technical data — X40+ ECONOV
TYPE: X40+ ECONOV series
Working width: 12–44 m (recommended blade sets: EV 18‑28 m, EV 24‑36 m, EV 32‑44 m)
Flush hopper capacity: 1900 / 2050 l; 2500 / 2650 l; 3000 / 3200 l (variants)
Overall width: 2.70 m (note: 2.55 m to hopper, 2.70 m to guardrail)
Useful loading width: 2.31 m; 2.81 m (variant)
Loading height: 1.23 m; 1.41 m; 1.52 m (variants)
Loading depth: 1.17 m
Weight (indicative, weighed version): 540 kg; 570 kg; 585 kg (variants)
Payload: 3000 kg

Technical data — X50+ ECONOV
TYPE: X50+ ECONOV series
Working width: 24–50 m (recommended blade sets: EV 24‑36 m, EV 32‑44 m, EV 40‑50 m)
Flush hopper capacity: 2400 / 2600 l; 3200 / 3400 l; 4000 / 4200 l (variants)
Overall width: 2.98 m
Useful loading width: 2.81 m
Loading height: 1.26 m; 1.44 m; 1.62 m (variants)
Loading depth: 1.17 m
Weight (indicative, weighed version): 670 kg; 705 kg; 730 kg (variants)
Payload: 4000 kg

Notes
Choose the blade set recommended for the target working width to achieve optimal distribution quality. Width measurements may differ between hopper and guardrail; refer to technical tables.

Technical specifications

• Product family: X40+ and X50+ ECONOV mounted fertiliser spreaders
• Key technologies: ECONOV (curved‑shape management), SPEED CONTROL (speed‑adaptive spreading), right/left modulation, ISOBUS and non‑ISOBUS terminal support (Quartz 800 / Matrix 840 GS)
• Hydraulic disc drive: optional solution keeping disc speed constant, independent of tractor engine rpm
• Hopper capacities: X40+ variants 1900–3200 l; X50+ variants 2400–4200 l
• Working widths: X40+ 12–44 m; X50+ 24–50 m
• 7‑year anti‑perforation corrosion warranty on DX, X and XT distributors (from 1 Sept 2019)
