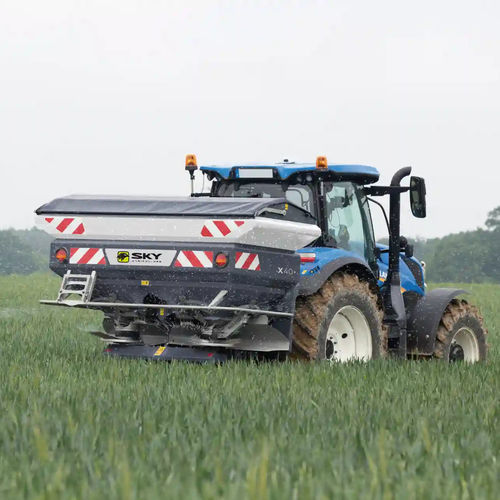

Mounted fertilizer spreader X series

solidgranularwide

Overview
Control and manage your fertilization projects with performance designed for demanding users:

• Exceptional spreading regularity
• Working widths up to 50 m
• Outstanding throughput up to 520 kg/min
• Extra-large hopper capacity up to 4200 l
• Simplified logistics and safe, easy adjustment

Weighing — profitability
Recognized weighing system with dual weighing chassis, ultra-capacitive 10T load cell and 4 leaf springs.

The benefits of weighing

• No more repeated flow tests
• 5–10% fertilizer savings
• In-cab weighing information display

3D view — spreading reality
Result of 30 years' collaboration with IRSTEA (ex-CEMAGREF): unrivalled knowledge of the fertilizer table, control of large widths accounting for ground parameters; the CEMIB test bench provides a 3D view of actual fertilizer distribution.

Distribution precision and Epsilon System
The patented Epsilon System enables multi-coating and guarantees optimal distribution with four “pure” layers per tray through strict two-stream pellet channelling.

Key distribution features

• Four pure fertilizer layers per tray via two-stream channelling at the paddles
• Digital control for complete data collection
• Optimized crossover between outward and return spread sheets
• Even spreading across very wide widths

Operational features

• Continuously adjustable chute for width adjustment by changing the feed point on the disc — safe adjustment away from moving parts
• Oscillating flow regulator, self-releasing on headlands and field ends
• Record flow up to 520 kg/min
• 100% electric border control — operated from the cab without leaving the tractor; zero broken grain

Documentation
Product brochure available (manufacturer brochure provided on page).

Technical data — X40+ (summary)
TYPE | X 40+ | X 40+ | X 40+
Working width | 12–44 m (1) | 12–44 m (1) | 12–44 m (1)
Flush hopper capacity | 1900 / 2050 l | 2500 / 2650 l | 3000 / 3200 l
Overall width | 2.70 m | 2.70 m | 2.98 m
Useful loading width | 2.31 m | 2.31 m | 2.81 m
Loading height | 1.23 m | 1.41 m | 1.52 m
Loading depth | 1.17 m | 1.17 m | 1.17 m
Weight (indicative) weighed version | 540 kg | 570 kg | 585 kg
Payload | 3000 kg | 3000 kg | 3000 kg

Technical data — X50+ (summary)
TYPE | X 50+ | X 50+ | X 50+
Working width | 24–50 m* | 24–50 m* | 24–50 m*
Flush hopper capacity | 2400 / 2600 l | 3200 / 3400 l | 4000 / 4200 l
Overall width | 2.98 m | 2.98 m | 2.98 m
Useful loading width | 2.81 m | 2.81 m | 2.81 m
Loading height | 1.26 m | 1.44 m | 1.62 m
Loading depth | 1.17 m | 1.17 m | 1.17 m
Weight (indicative) weighed version | 670 kg | 705 kg | 730 kg
Payload capacity | 4000 kg | 4000 kg | 4000 kg

Notes
(1) For optimum working quality, choose the blade set best suited to your application: EV 12–18 m, EV 18–28 m, EV 24–36 m for X40+; for X50+ choose EV 24–36 m, EV 32–44 m or EV 40–50 m.

Warranty
7-year anti-perforation corrosion warranty available for DX, X and XT fertilizer distributors manufactured from 1 September 2019.

Specifications

• Models: X40+ and X50+ (multiple hopper capacities and loading heights)
• Working widths: X40+ — 12–44 m; X50+ — 24–50 m
• Hopper capacities: up to 3200 l (X40+) and up to 4200 l (X50+)
• Max flow: up to 520 kg/min
• Weighing system: dual weighing chassis, ultra-capacitive 10T load cell, 4 leaf springs, in-cab display
• Distribution technology: Epsilon System — multi-coating and 4 pure layers per tray
• Electric edging control: 100% electric edging control available; cab operation
