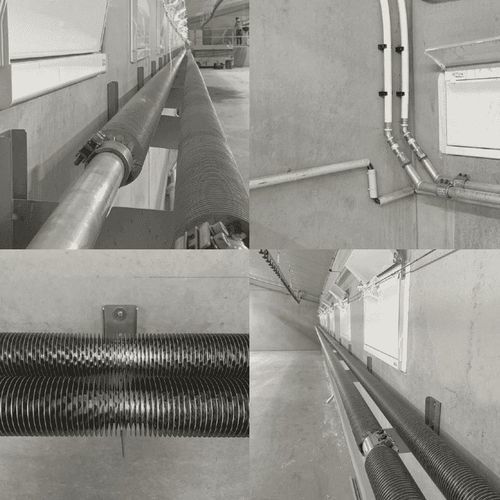

Tubular heat exchanger SPIR’HEAT

for farm buildingsaluminum

Product description
The SPIRIT’HEAT heating tube is compatible with gas, oil and electric boilers. Connections are made without soldering, simplifying installation and on-site assembly. Example performance: for a water regime 80°C/60°C, inlet air 32°C and water flow 4.5 m3/h, the calculated power per linear metre is given as 365 kW (study on request). Standard tube diameter is 48.3 mm; standard length is 6 m.

Strengths

• Comfort: no air velocity
• Improvement of airflow
• Ease: simple installation without soldering
• Maintenance: easy maintenance with 7 mm pitch
• Durability: aluminium tube

Technical characteristics / specifications

• Diameter: 48.3 mm
• Tube diameter (description): 48 mm
• Length: 6 m
• Power (technical box): 500 W/m (EN, Δ20°)
• Performance example (description): 365 kW per linear metre for water regime 80°C/60°C, air 32°C, water flow 4.5 m3/h (study on request)
• Connections without soldering (easy installation)
• Maintenance pitch: 7 mm
• Material: aluminium tube
• Study: study carried out on request
