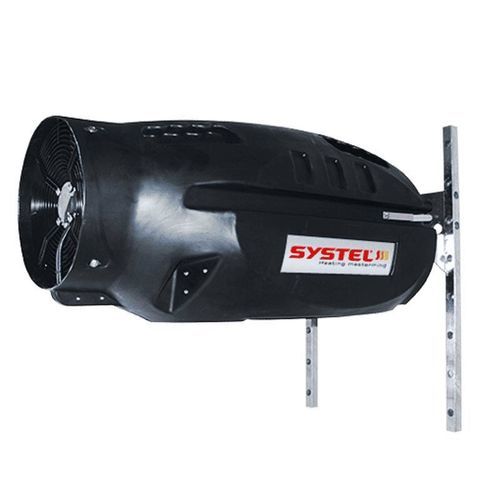

Hot water air heater AEC12

farm building

Description
Hot water air heater with a nominal power of 12 000 W (12 kW). Designed for a water regime of 80°C/60°C at a reference ambient temperature of 28°C. The casing is polypropylene and the hot water heat exchanger is treated by cataphoresis. Air flow: 1600 m3/h.

Dimensions of the device

• Length: 1011 mm
• Width: 570 mm
• Diameter: 369.5 mm

Key advantages

• Sustainability
  • Polypropylene casing
  • Heat exchanger with cataphoresis treatment
• Economy
  • Electronically-switched fan for reduced energy consumption
• Serviceability
  • Optional support enables removal of the casing with the fan while the heat exchanger remains attached to the support, facilitating cleaning

Technical specifications

• Rated power (model shown): 12 000 W (12 kW)
• Water regime: 80°C / 60°C
• Reference ambient temperature: 28°C
• Shell material: polypropylene
• Heat exchanger treatment: cataphoresis
• Air flow: 1600 m3/h
• Dimensions (L x W x Ø): 1011 mm x 570 mm x 369.5 mm
• Available power range: 12.8 kW / 24.6 kW / 35.5 kW / 51.6 kW / 75.1 kW / 86 kW
