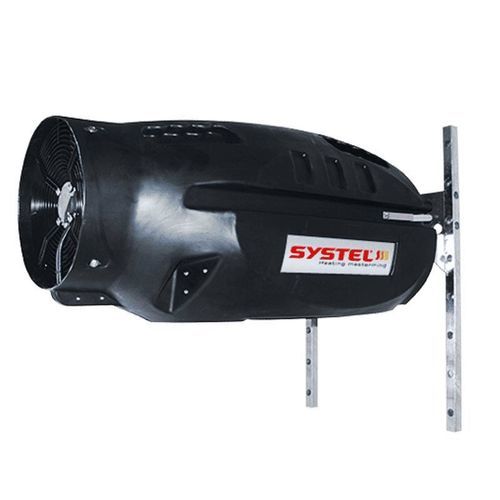

Hot water air heater AEC25

farm building

Description
Hot-water aerotherm AEC25 rated 25 kW, designed for water regimes 80°C/60°C and tested at an ambient temperature of 28°C. The unit features a polypropylene casing and a hot-water coil with cataphoretic treatment. Airflow is 2300 m³/h and the fan is energy-efficient with electronic control.

Dimensions of the device

• Length: 1011 mm
• Width: 570 mm
• Diameter: 369.5 mm

Strengths

• Sustainability: Polypropylene casing; hot-water coil with cataphoretic treatment
• Economy: Electronically switched, energy-efficient fan
• Practicality: Optional support allows removal of the casing with its fan for easier cleaning while the hot-water coil remains fixed to the support

Technical characteristics / specifications

• Reference: AEC25
• Rated power: 25,000 W (25 kW)
• Available powers (range): 12.80 kW / 24.6 kW / 35.50 kW / 51.60 kW / 75.10 kW / 86 kW
• Water regime: 80°C / 60°C
• Ambient reference temperature: 28°C
• Airflow: 2300 m³/h
• Casing material: Polypropylene
• Hot-water coil: Cataphoretic treatment
• Fan: Energy-efficient, electronically switched
• Dimensions: Length 1011 mm; Width 570 mm; Diameter 369.5 mm
• Accessory: Optional wall/support bracket permitting casing removal for cleaning while coil remains fixed to the support
