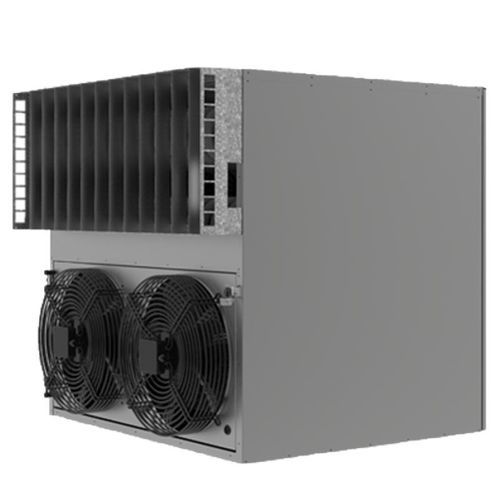

Gas hot air generator CBX series

propanefarm building

Overview
The CBX is an outdoor indirect-combustion gas generator available in 50 kW and 80 kW configurations (market designations CBX 50 and CBX 75). It accepts propane or natural gas. The unit’s casing is galvanized and painted for outdoor use.

Equipment characteristics

• CBX 50
  • Rated heat output: 48.1 kW
  • Air flow: 4800 m3/h
  • Height: 1130 mm
  • Width: 740 mm
  • Depth: 1110 mm (without inner diffuser)
  • Weight: 200 kg
• CBX 75
  • Rated heat output: 78.5 kW
  • Air flow: 9000 m3/h
  • Height: 1130 mm
  • Width: 1120 mm
  • Depth: 1110 mm (without inner diffuser)
  • Weight: 280 kg

Strengths

• Safety: Designed for outdoor installation
• Comfort: Indirect combustion provides progressive heating
• Performance: Indirect combustion reduces CO2 emissions and building humidity
• Animal welfare: Designed to address societal expectations regarding animal well‑being

Documentation

• Datasheet CBX50-80 SYSTEL (technical data sheet)
• Manual CBX50-75 SYSTEL (user manual)

Technical specifications

• Gas type: Natural gas and propane
• Power options: 50 kW or 80 kW (market models CBX 50 and CBX 75; approx. 48.1 kW and 78.5 kW)
• Combustion type: Indirect
• Heating mode: Progressive (radiant / progressive generator heating)
• Installation: Outdoor
• Casing: Galvanized and painted
• CBX 50 — Rated power: 48.1 kW; Air flow: 4800 m3/h; Dimensions (H x W x D): 1130 x 740 x 1110 mm (depth without inner diffuser); Weight: 200 kg
• CBX 75 — Rated power: 78.5 kW; Air flow: 9000 m3/h; Dimensions (H x W x D): 1130 x 1120 x 1110 mm (depth without inner diffuser); Weight: 280 kg
