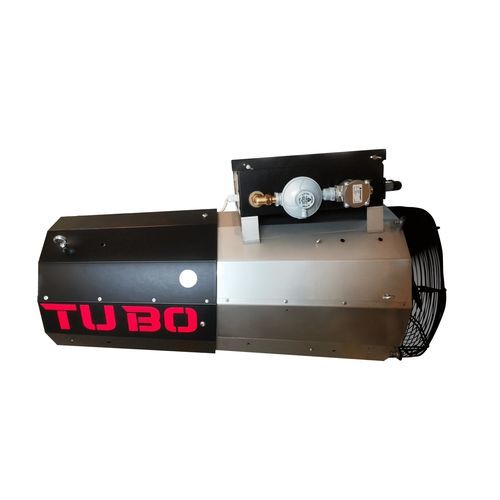

Gas hot air generator TUBO

propanefarm building

Description
The TUBO is an on/off indoor direct-combustion gas heater compatible with propane and natural gas. It is offered in three power ratings: 50 kW, 70 kW and 90 kW.

Models

• TUBO 50: Air flow: 1,440 m3/h; Length: 948 mm; Diameter: 440 mm; Weight: 30 kg.
• TUBO 70: Air flow: 2,800 m3/h; Length: 1,095 mm; Diameter: 497 mm; Weight: 36 kg.
• TUBO 90: Air flow: 4,040 m3/h; Length: 1,126 mm; Diameter: 557 mm; Weight: 45 kg.

Strengths

• Efficiency: Low CO, CO2 and NOx emissions; air throw greater than 40 meters.
• Control: Control box with LED indicating device status.
• Economy: EC fan for reduced energy consumption.
• Maintenance: Designed for easy access and service.

Features

• Combustion: Direct
• Power options: 50 kW, 70 kW, 90 kW
• Gas type: Propane or natural gas
• Heating mode: ON/OFF
• Installation: Indoor

Technical specifications

• Combustion: Direct
• Power: 50 kW / 70 kW / 90 kW
• Fuel: Propane or natural gas
• Control mode: ON/OFF
• Installation: Indoor
• TUBO 50 — Air flow: 1,440 m3/h; Length: 948 mm; Diameter: 440 mm; Weight: 30 kg
• TUBO 70 — Air flow: 2,800 m3/h; Length: 1,095 mm; Diameter: 497 mm; Weight: 36 kg
• TUBO 90 — Air flow: 4,040 m3/h; Length: 1,126 mm; Diameter: 557 mm; Weight: 45 kg
• Emissions: Low CO, CO2 and NOx
• Air throw: > 40 m
• Control: LED status on control box
• Fan: EC fan
