Gas hot air generator PGI series

propanefarm building

Product overview

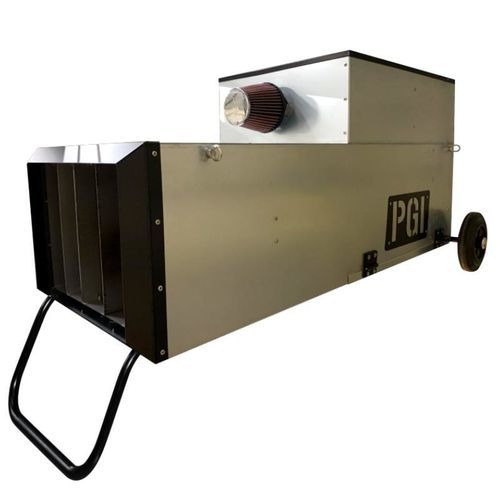

The PGI is a progressive indoor gas generator with direct combustion, available in 60 kW or 85 kW versions and supplied with a wheel kit. Designed for indoor heating of livestock buildings and technical premises, it features a galvanized steel body and a stainless steel combustion chamber. It operates on propane or natural gas and provides an air flow of 3500 m3/h. The unit supports standalone operation via an LCD screen and a temperature probe.

Device characteristics

• Gases used: propane or natural gas
• Flow rate: 3500 m3/h
• Materials: galvanized steel body; stainless steel combustion chamber
• Length: 1377 mm
• Width: 665 mm (with wheel kit) / 449 mm (without wheel kit)
• Height: 741 mm (with stand) / 537 mm (without stand)
• Weight: 70 kg (with wheels and bracket kit)
• Standalone control: LCD screen and temperature probe

Strengths

• Comfort: progressive heating for controlled temperature rise, suitable for livestock environments
• Practicality: easier transport thanks to 2 integrated wheels (wheel kit)
• Technology: combustion air 100% from outside or filtered intake (optional)
• Low NOx burner for reduced emissions

Technical specifications

• Brand: Systel
• Model: PGI
• Type of gas: natural or propane
• Power: 60 kW or 85 kW
• Combustion: direct
• Heating type: progressive
• Installation: indoor
• Flow rate: 3500 m3/h
• Materials: galvanized steel body; stainless steel combustion chamber
• Dimensions: Length 1377 mm; Width 665 mm (with wheel kit) / 449 mm (without wheel kit); Height 741 mm (with stand) / 537 mm (without stand)
• Weight: 70 kg (with wheels and bracket kit)
• Control: standalone operation via LCD screen and temperature probe
• Mobility: wheel kit (2 integrated wheels)
• Options: filter for combustion air (optional)
• Emissions: low NOx burner
