Linear position sensor MH

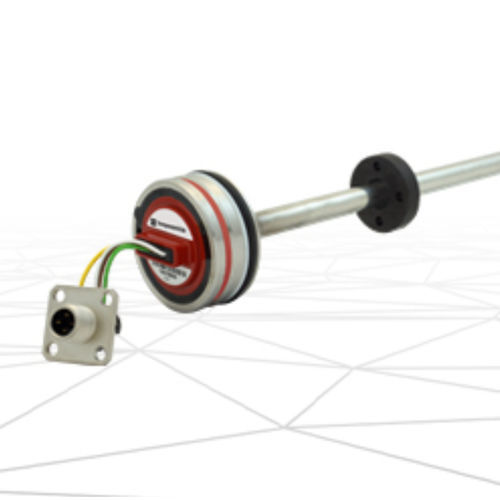

Temposonics® MH-Series model EMBEDDED (MH) position sensors measure the absolute position of hydraulic cylinders in mobile applications. These sensors are designed for full sealing and embedding in hydraulic cylinders, ensuring robust performance in demanding environments. The position sensor features the proprietary DT connector system and M12 connector system to enable IP69K protection, making it highly resistant to dust and water ingress. Outputs available include Analog, CANbus, and PWM, providing flexibility for integration into various control systems. The linear position sensor offers safety and reliability to increase your machine’s productivity and avoid maintenance and downtime.

Main Features

• Designed for full sealing and embedding in hydraulic cylinders
• Proprietary DT connector system and M12 connector system for IP69K protection
• Output options: Analog, CANbus, PWM

Specifications

• Output: Analog, CANbus, PWM
• Stroke Length: 50…2500 mm (all outputs)
• Resolution: 0.1 mm (all outputs)

Characteristics / Technical Specifications

• Absolute position measurement for hydraulic cylinders in mobile applications
• Full sealing and embedding capability
• IP69K protection with DT and M12 connector systems
• Output types: Analog, CANbus, PWM
• Stroke length range: 50 to 2500 mm
• Resolution: 0.1 mm
• Enhanced safety and reliability for increased productivity and reduced downtime
