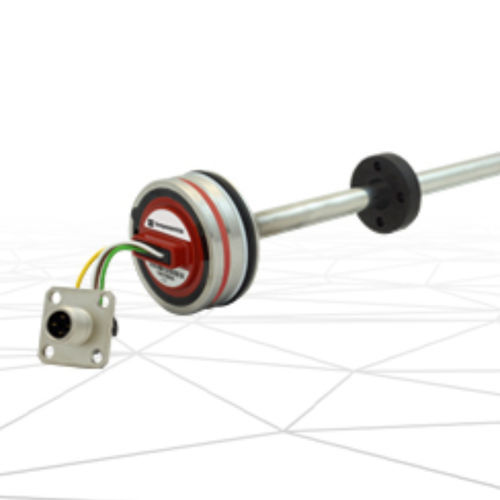

Linear position sensor MH200

The Temposonics® MH-Series model EMBEDDED (MH200) position sensors are designed to measure the absolute position of hydraulic cylinders in mobile applications. These sensors are fully sealed and intended for embedding within hydraulic cylinders, ensuring robust protection and reliable operation in demanding environments. The MH200 features a proprietary M12 connector system that enables an IP69K protection rating, making it highly resistant to dust and water ingress. Output options include Analog and CANbus, providing flexibility for integration into various control systems. The sensor supports stroke lengths up to 5000 mm, making it suitable for a wide range of cylinder sizes. The linear position sensor is engineered to deliver safety and reliability, helping to increase machine productivity while minimizing maintenance and downtime.

Main Features

• Designed for full sealing and embedding in hydraulic cylinders
• Proprietary M12 connector system for IP69K protection
• Output options: Analog, CANbus
• Stroke length up to 5000 mm

Specifications

• Output: Analog, CANbus
• Stroke Length: 2520…5000 mm
• Resolution: ±0.2 mm

Characteristics / Technical Specifications

• Product type: Embedded linear position sensor for hydraulic cylinders
• Protection rating: IP69K (with M12 connector system)
• Output signals: Analog, CANbus
• Maximum stroke length: 5000 mm
• Resolution: ±0.2 mm
• Application: Mobile hydraulics
