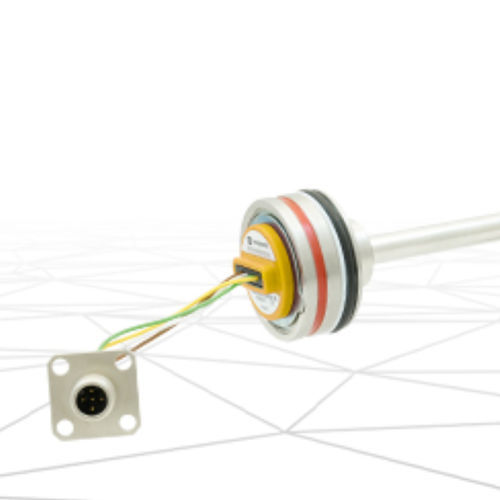

Linear position sensor MH series

Temposonics® MH-Series SAFETY position sensors are developed for use in safety circuits and safety functions for measuring linear position as part of the functional safety of machinery and equipment. This linear position sensor supports the safety and reliability of your mobile applications!

Key Features

• Suitable for Safety Integrity Level 2 (SIL-2) applications
• Stroke length up to 5000 mm
• High reliability due to EMC, shock & vibration resistance
• Output options: Voltage, Current, J1939-76 Safety, CANopen Protocol DS-301, DS-304 CANopen Safety protocol, device profile DS-406

Specifications

• Output: Analog, CANbus (S02/J91 output), CANbus (S01 output)
• Stroke length: 50…2500 mm (Analog), 50…5000 mm (CANbus S02/J91 and S01 output)
• Resolution: 0.1 mm
• Status: Active (Analog, CANbus S02/J91 output), Active Mature (CANbus S01 output)

Characteristics / Technical Specifications

• Safety Integrity Level: SIL-2
• Maximum stroke length: 5000 mm
• EMC, shock & vibration resistance for high reliability
• Output types: Voltage, Current, J1939-76 Safety, CANopen Protocol DS-301, DS-304 CANopen Safety protocol, device profile DS-406
• Resolution: 0.1 mm
• Status: Active (all outputs), Active Mature (CANbus S01 output)
