Level sensor LevelLimit

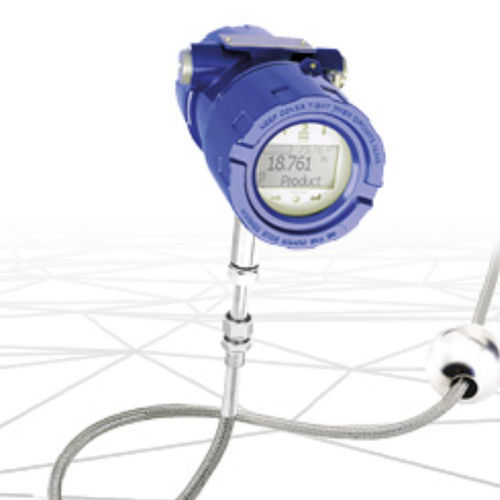

The Level Plus® LevelLimit liquid level transmitter is designed for combined tank gauging and overfill protection, meeting the demand for an accurate and robust liquid level transmitter with integral HI level overfill protection. This transmitter provides the capability to measure product level, interface level, temperature, and volume. It features electrically isolated HI level detection using a separate set of electronics and reed switch technology, delivering a Digital I/O output based on the movement of an independent HI level float. The HI level float also allows for mechanical testing to verify operation.

Main Features

• 5-IN-1 Measurement
• Integral HI level Digital I/O
• Level Inherent Accuracy +/- 1 mm
• API Temperature Corrected Volumes
• No Scheduled Maintenance or Recalibration
• Hazardous Area Certified

Set it and forget it!

Technical Specifications

• Output: Modbus, Digital I/O
• Linearity: ±1 mm
• Measuring Range: 1575…22000 mm
