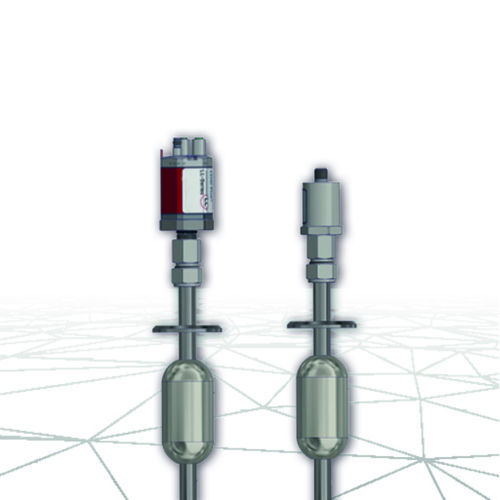

Level sensor LLH

The Level Plus LLH is a liquid level transmitter designed for process control in industrial environments, specifically for sanitary and hygienic applications. It provides accurate and robust measurement of product level and/or interface level in a compact mechanical design. The LLH transmitter is engineered for long-term reliability, requiring no scheduled maintenance or recalibration for its expected 10-year sensor life. It is suitable for mounting on most tanks, offering NPT and Tri-Clamp connections from 3/4 to 6 inches, and supports a wide variety of output options including Analog, CANbus, SSI, IO-Link, POWERLINK, Profinet, EtherNet/IP, and EtherCAT. The model selection includes float and cable options, making it adaptable for various sanitary applications.

• Key Features
  • Sanitary Finish Ra 25 uin (0.64 µm)
  • Measures both product and interface levels
  • No scheduled maintenance or recalibration required
  • Inherent accuracy of +/- 0.5 mm
  • IP69K protection rating
  • Withstands 100 g shock and 15 g vibration

Specifications

• Output: Analog, SSI, CANbus, IO-Link, EtherCAT, POWERLINK, EtherNet/IP, Profinet
• Linearity: ±1 mm
• Measuring Range: 127 to 2525 mm (5.0 to 99.4 in)
