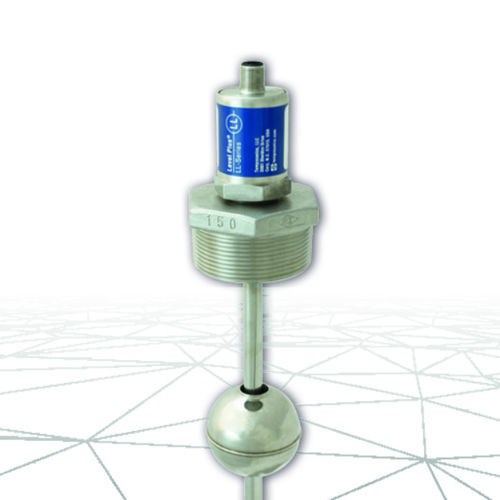

Level sensor LLE

The Level Plus LLE is a liquid level transmitter designed for process control in industrial environments, offering accurate and robust measurement for general purpose applications. The LLE provides product level and/or interface level readings in a compact mechanical design and can be optionally equipped with temperature measurement via a straight RTD output. This transmitter is engineered for long-term reliability, requiring no scheduled maintenance or recalibration for its expected 10-year lifespan—set it and forget it. The LLE can be mounted on most tanks with NPT and RF flanged connections ranging from 3/4 to 6 inches and supports a variety of output options including analog, CANbus, SSI, and IO-Link. The model number includes selections for float, cable, and stop collar options, making the single model suitable for a wide range of level measurement applications.

Main Features

• Product and interface level measurement
• No scheduled maintenance or recalibration required
• Inherent accuracy of +/- 0.5 mm
• IP69K protection rating
• 100 g shock and 15 g vibration resistance
• Optional integral temperature measurement

Technical Specifications

• Output: Analog, SSI, CANbus, IO-Link
• Linearity: ±1 mm
• Measuring Range: 156…2646 mm (6.2…104.2 in.)
