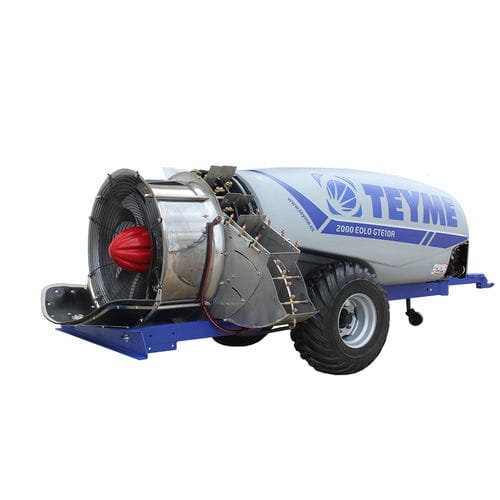

trailed agricultural atomizer / for viticulture / for orchards / centrifugal
for viticulture, for orchards
2,000 l, 3,000 l, 4,000 l (528.3 gal)
- High trees
- More demanding crops’ frames
- Huge air pressure
- Ø1015 mm with 3 channels
- Highest effectiveness in the treatment
LOW CONSUMPTION propeller.10 SICKLE-profile blades with variable and progressive pitch with 8 adjustment points. TEYME’s patented special design.
11 blades steel rear static deflector. It provides radial air with turbulences and uniform distribution 50 and 50%.
TURBO AUXILIARY CHANNEL Nº4
TURBO lower channel retrieves without extra consumption a 16,50% out of the air which in other sprayers is wasted, increasing its flow rate and improving the drift effect caused by the speed of the march
BLOWER HOUSING WITH 3 CHANNELS
Ø1015mm X 500mm aerodynamic stainless steel blower housing, 3 Channels (A, B and C). The channels’ system increases a 17% the air production. It prevents the faster upper air from bumping into the slower one of the central area. Air exit adjustable from 22m/s to 44 m/s.
GEAR BOX AND CLUTCH
Gear box 2 speeds + neutral point. TEYME’s special ratio. Capable of transferring big power.Centrifugal 3-shoes ZAMAK clutch with smooth and progressive starting.
REGULATION BY SLIDING DEVICE
A, B, C channels width adjustable by means of sliding device: min. 415mm. max. 475mm. and air speeds, from 22m/sec. to 44m/sec. To adjust the treatments depending on the needs of application. TEYME’s exclusive advantage Thanks to the width of the channels, it allows 50 % faster marching speeds with regards to the standard sprayers.
